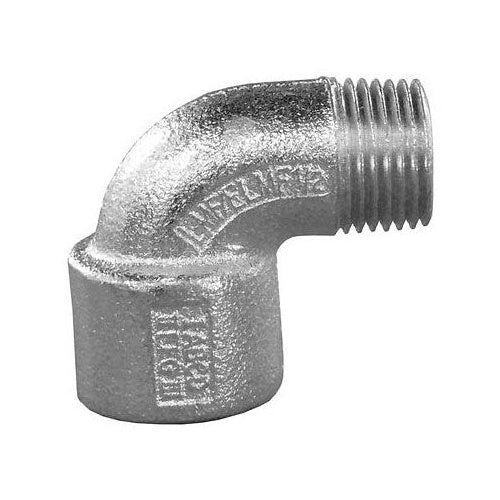

Appleton ELMF9050A 1/2" Aluminum 90D Elbow

Overview

Appleton ELMF9050A 1/2" Aluminum 90D Elbow

Product Specifications

• UPC: 78138162222
• Finish: Natural
• Approval: UL 1203, CSA C22.2
• Catalog Number: ELMF9050A
• Brand Name: Unilet[R]
• Model: ELMF
• Type: Swivel
• Trade Size: 1/2 Inch
• Bend Angle: 90 Degree
• Connection Type: Male/Female
• Material: Copper Free Aluminum
• Catalog Description: UNILETS 90 DEG ELBOW, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, TRADE SIZE: 1/2 IN, FLEXIBILITY: RIGID AND IMC, CONNECTION: TAPERED MNPT X TAPERED FNPT, DIMENSION A: 1-1/2 IN, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 2
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum Material; Natural Finish; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381622226
• SKU Name: app elmf9050a

Resources

• Manufacturer Spec Sheet
