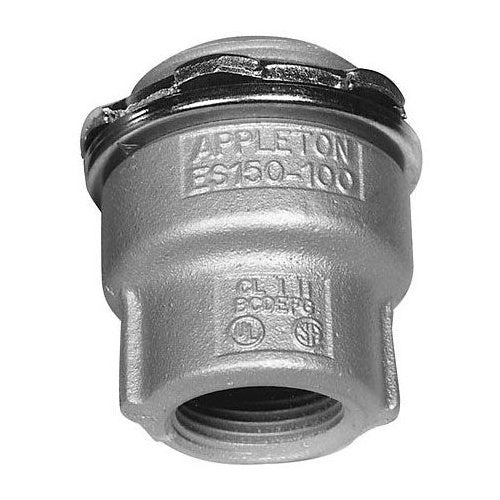

Appleton ES150100 1" Sealing Hub

Overview

Appleton ES150100 1" Sealing Hub

Product Specifications

• UPC: 78138170322
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Approval: UL 886, CSA C22.2
• Used On: Threaded Rigid Metal Conduit/IMC
• Additional Information: Internal Volume 3.10 Inch; Enclosure Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Catalog Number: ES150100
• Brand Name: Unilet[R]
• Model: ES
• Type: Tapered Male/Female Threaded
• Throat Type: Non-Insulated
• Trade Size: 1-1/2 Inch (Male Hub), 1 Inch (Female Hub)
• Size: 2.25 Inch Dia x 3.13 Inch L
• Ground Type: Grounding
• Catalog Description: UNILETS SEALING HUB, SIZE: 1 X 1-1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED MNPT X TAPERED FNPT, CUBIC CAPACITY: 3.1 CU-IN, LENGTH: 3.13 IN, HEIGHT: 2-1/
• Category: Cast Boxes
• Full Technical Description: Tapered Male/Female Threaded Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.25 Inch Diameter X 3.13 Inch Length Size; Imc/Threaded Rigid Conduit Used on; UL 886, CSA C22.2 Approval; Grounding; 1-1/2 Inch (Male Hub), 1 Inch (Female Hub) Trade Size; Explosionproof, Dust Ignitionproof; UNILETS[R] Brand; Internal Volume 3.1 Cubic Inch; Enclosure Rating Class I Division 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Application Switch Gear, Motor Control Center, Sheet Metal Structure, Cast Box, Enclosure; Applicable Standard Nec/Cec; ES Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 781381703222
• SKU Name: app es150100
