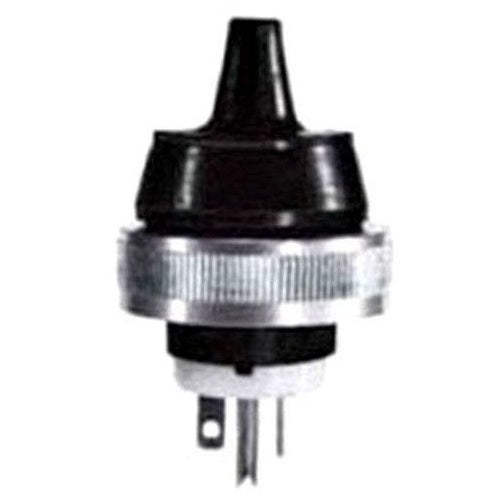

Appleton FSWP6-15 Attachment Plug w/Boot & Ring

Overview

Appleton FSWP6-15 Attachment Plug w/Boot & Ring

Product Specifications

• Application: For Use With FSK6-15, FSK6-15-A Series Receptacles
• Voltage Rating: 250 V
• Brand Name: Appleton
• Material: Neoprene Boot, Aluminum Fastening Ring
• Nema Rating: NEMA 6-15P
• Number Of Poles: 2
• Number Of Wires: 3
• Special Features: With boot and fastening ring; Weatherproof; Raintight and dust-tight
• Standard: CSA Certified
• Type: FS Series Attachment Plug
• Catalog Description: FS SERIES ATTACHMENT PLUG, NUMBER OF POLES: 2, NUMBER OF WIRES: 3, AMPERAGE RATING: 15 AMP, VOLTAGE RATING: 250 V, MATERIAL: NEOPRENE BOOT, ALUMINUM FASTENING RING, NEMA RATING: NEMA 6-15P, STANDARD: CSA CERTIFIED, FOR USE WITH FSK6-15,
• Category: Pin & Sleeve Devices
• Full Technical Description: Non-Locking Type; CSA C22.2 Approval; 250 Volt 15 Amp NEMA 6-15R Receptacle, 250 Volt 15 Amp NEMA 6-15P Plug Device Type; Plug Material Neoprene Boot; Number of Poles 2; Number of Wires 3; Includes Aluminum Fastening Ring, Neoprene Gasket, Stainless Steel Screw; Used on Ridge Top Box; Application Commercial/Industrial, Switch and Receptacle; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Weatherproof Device Box Cover with Device
• Unspsc: 39121402
• UPC 12 Digit: 781381397728
• SKU Name: app fswp615

Resources

• Product Spec Sheet
