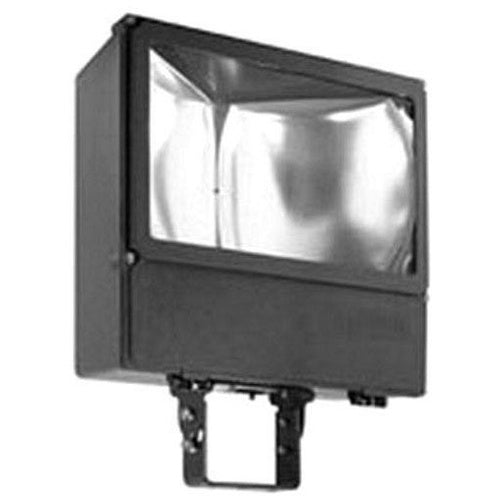

Appleton G-AM771P-MT 400W Metal-Halide Floodlight

Overview

Appleton G-AM771P-MT 400W Metal-Halide Floodlight

Product Specifications

• UPC: 78138189887
• Housing Material: Copper-Free Aluminum
• Finish: Architectural Bronze Polyester
• Size: 433.4 Millimeter Width x 165.1 Millimeter Depth x 635 Millimeter Height
• Approval: UL 844/1598-A
• Additional Information: Gasket Material Silicone Rubber; Lens Material Thermal Shock and Impact Resistant Glass; Socket Material Porcelain with Nickel Plated Heavy-Gauge Brass Contact; Reflector Finish Aluminum; Application General Duty
• Catalog Number: G-AM771P-MT
• Brand Name: Areamaster[TM]
• Model: GAM
• Lamp Type: Mogul Base Metal Halide
• Lamp Wattage: 400 Watt
• Lamp/Ballast Voltage: 120/208/240/277 Volt AC 60 Hertz
• Ballast Type: Multi-Tap, Pulse Start
• Mounting: Yoke
• Catalog Description: AREAMASTER 250/400 INTEGRALLY BALLASTED FLOODLIGHT, FIXTURE TYPE: YOKE MOUNT (TRUNNION), LAMP TYPE: 400 WTT MOGUL PULSE START METAL HALIDE, LAMP WATTAGE: 400 WTT, VOLTAGE RATING: 120/208/240/277 V, NUMBER OF LAMPS: 1, MATERIAL: COPPER
• Category: Hid Floodlights
• Full Technical Description: 16.92 Inch Width X 7.76 Inch Depth Size; Architectural Bronze Polyester Finish; UL 844/1598/1598A, CSA C22.2, CSA (Canada and Us) Approval; Yoke Mounting; Multi-Tap, Constant Wattage Autotransformer Ballast Type; Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 2 Group Iia Iib Iic, Class III, IP66 Enclosure; Pulse Start Metal Halide Lamp Type; 400 Watt Lamp Wattage; Copper-Free Aluminum Housing Material; 120/208/240/277 Volt AC 60 Hertz Lamp/Ballast Voltage; 1.9 Square Foot EPA; AREAMASTER[TM] Brand; Material Copper-Free Aluminum (Lens Door), Aluminum (Reflector), Silicone Rubber (Gasket), Zinc Plated Steel (Yoke), Stainless Steel (Bolt); Application Pulp/Paper Mill Processing Plant, Chemical Plant, Oil Refinery, Foundry, Storage Area, Waste/Sewage Treatment, Parking Garage, Hazardous/Marine/Wet Location; Applicable Standard Nec/Cec; 250/400 Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Floodlight Fixture
• Unspsc: 39111524
• UPC 12 Digit: 781381898874
• SKU Name: app gam771pmt
