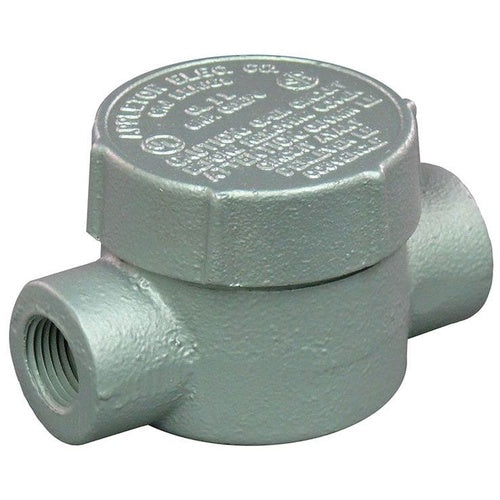

Appleton GRJSK-50 1/2" Unilet Hub Cover

Overview

Appleton GRJSK-50 1/2" Unilet Hub Cover

Product Specifications

• UPC: 78138144105
• Finish: EPOXY POWDER COATED
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Used On: GRJS UNIVERSAL CONDUIT OUTLET BOX
• Approval: UL 886
• Catalog Number: GRJSK-50
• Brand Name: Appleton[R]
• Model: GRJS
• Type: HUB
• Installation: EXTERNALLY THREADED
• Hub Size: 1/2 INCH
• Cover Opening Diameter: 2.56 INCH
• Material: ALUMINUM
• Catalog Description: EXPLOSSIONPROOF CONDUIT OUTLET BOX COVER, TYPE HUB, INSTALLATION EXTERNALLY THREADED, COVER OPENING DIAMETER 2.56 INCH, MATERIAL MALLEABLE IRON, FINISH ZINC ELECTROPLATE CHROMATE EPOXY POWDER COATED, ENCLOSURE CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III, USED ON GRJS SERIES UNIVERSAL CONDUIT OUTLET BOX, APPROVAL UL, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITION PROOF
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Hub Type; Copper-Free Aluminum Material; Epoxy Powder Coated Finish; Grjs Universal Conduit Outlet Box Used on; 1/2 Inch Hub Size; Externally Threaded Installation; UL, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2.56 Inch Cover Opening Diameter; UNILETS[R] Brand; Capacity 7.3 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Metal Conduit; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GRJS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box Cover
• Unspsc: 39121304
• UPC 12 Digit: 781381441056
• SKU Name: app grjsk50

Resources

• Manufacturer Spec Sheet
