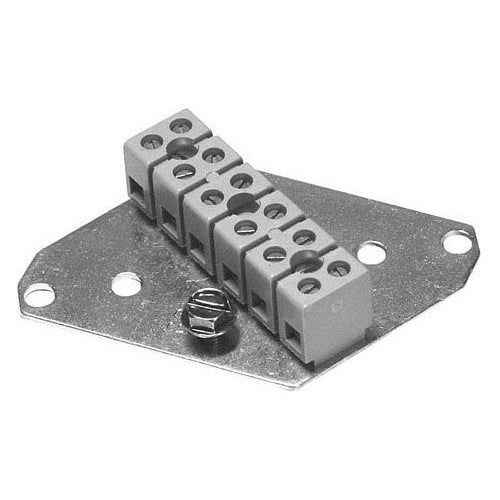

Appleton GRTB63 Terminal Block Kit

Overview

Appleton GRTB63 Terminal Block Kit

Product Specifications

• Application: For Use In Standard GR Series Boxes
• Brand Name: Appleton
• Connection: Screw
• Special Features: Form number: 3; Form numbers designate cover and matching body sizes; Mounting hole: (2) predrilled and tapped standard hole
• Standard: UL Listed, CSA Certified
• Type: GRTB Series Terminal Block Kit
• Voltage Rating: 300 V
• Wire Size: 22 - 12 AWG
• Catalog Description: GRTB SERIES TERMINAL BLOCK KIT, WIRE SIZE: 22 - 12 AWG, AMPERAGE RATING: 25 AMP UL, 13 AMP CSA, VOLTAGE RATING: 300 V UL AND CSA, CONNECTION: SCREW, NUMBER OF POLES: 6, STANDARD: UL LISTED, CSA CERTIFIED, FOR USE IN STANDARD GR SERIES BOXE
• Category: Terminal Blocks & Accessories
• Full Technical Description: Terminal Block Kit, Form 3 Type; Gr Conduit Outlet Box Used on; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Explosionproof, Dust Ignitionproof; Wire Size 22 to 12 AWG; Number of Positions 6; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Box/Enclosure General Accessories
• Unspsc: 39121410
• UPC 12 Digit: 781381625395
• SKU Name: app grtb63

Resources

• Manufacturer Spec Sheet
