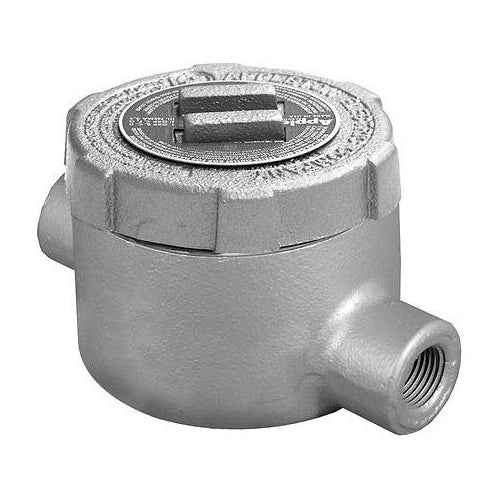

Appleton GUL100 External Thread Conduit Body

Overview

Appleton GUL100 External Thread Conduit Body

Product Specifications

• UPC: 78138151741
• Shape: ROUND
• Cover Type: INTERNALLY THREADED
• Cover Opening Diameter: 3.38 INCH
• Enclosure: CLASS I GROUP B C D, CLASS II GROUP E F G, CLASS III
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Catalog Number: GUL100
• Brand Name: Appleton[R]
• Model: GU
• Style: L
• Hub Size: 1 INCH
• Hub Type: EXTERNAL
• Number Of Hubs: 2
• Hub Location: (2) SIDE
• Catalog Description: EXPLOSIONPROOF CONDUIT OUTLET BOX, STYLE L, HUB SIZE 1 INCH, HUB TYPE EXTERNAL, NUMBER OF HUBS 2, HUB LOCATION (2) SIDE, CAPACITY 19 CU INCH, SHAPE ROUND, COVER TYPE INTERNALLY THREADED, COVER OPENING DIAMETER 3.38 INCH, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/4, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, APPROVAL UL 886, CSA C22.2, APPLICATION GENERAL PURPOSE WIRING, PULLING OF WIRE, CONNECT CONDUIT LENGTH AND CHANGE DIRECTION OF CONDUIT RUN, PROVIDE ACCESS FOR MAINTENANCE
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Ductile Iron Material; Round Shape; 1 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4 Enclosure; Internally Threaded Cover Type; 19 Cubic Inch Capacity; L Style; (2) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Includes Cover, Gasket, Internal Ground Screw; Application Indoor and Outdoor; Applicable Standard Nec/Cec; GU Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381517416
• SKU Name: app gul100
