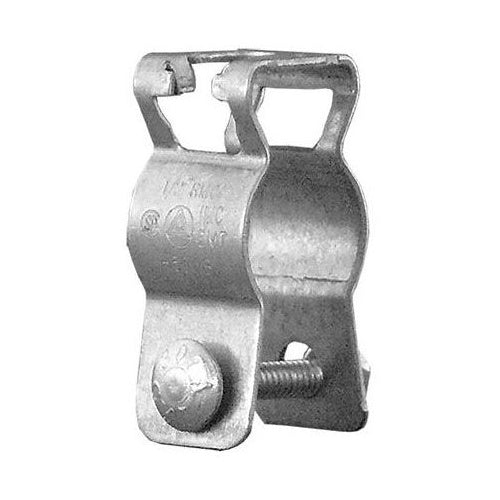

Appleton H-150WB 1-1/2" Conduit Hanger w/Bolt

Overview

Appleton H-150WB 1-1/2" Conduit Hanger w/Bolt

Product Specifications

• UPC: 78138145480
• Size: 1 Inch D x 3.22 Inch H
• Mounting Hole Size: 5/16 Inch (Bolt)
• Standard Package: 100
• Approval: UL, CSA C22.2
• Catalog Number: H-150WB
• Brand Name: Hang-On[R]
• Type: Conduit Hanger with Bolt
• Trade Size: 1-1/2 Inch
• Installation: Clamping Bolt
• Conduit Type: 1-1/2 Inch Rigid/EMT/IMC
• Material: Steel
• Finish: Zinc Plated
• Catalog Description: HANG-ON CONDUIT HANGER WITH BOLT, SIZE: 1-1/2 IN, MATERIAL: STEEL, FINISH: ZINC PLATED, STANDARD: UL 2239, UL FILE NUMBER E336499, CSA C22.2 NO. 18.4, CSA 065178, FOR USED TO SECURE RIGID METAL CONDUIT, IMC OR EMT TO THREADED ROD, SUPPORT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Conduit Hanger With Bolt Type; Steel Material; 1 Inch Depth X 3.22 Inch Height Size; Zinc Plated Finish; UL 2239, CSA Approval; 1-1/2 Inch Trade Size; 0.31 Inch (Bolt) Mounting Hole Size; Emt/Imc/Rigid Metal Conduit Type; Hang-ON[TM] Brand; Application Commercial/Industrial; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Hanger
• Unspsc: 39121701
• UPC 12 Digit: 781381454803
• SKU Name: app h150wb

Resources

• Manufacturer Spec Sheet
