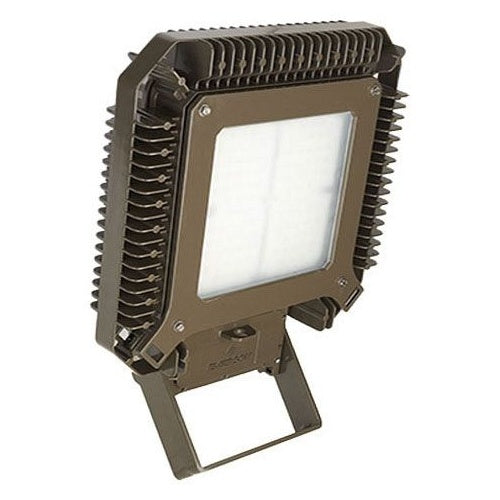

Appleton IAMLHL2CF6BH IAMLED Hl 30Klm CW FRS 7X7 BH

Overview

Appleton IAMLHL2CF6BH IAMLED Hl 30Klm CW FRS 7X7 BH

Product Specifications

• Average Life: 60000 HR
• Brand Name: Appleton
• Color: Bronze
• Mounting: Yoke
• Shape: Rectangular
• Size: 18.67x15.94x5.13 IN
• Sub Brand: Areamaster HL
• Type: Industrial
• Voltage Rating: 347-480Vac 50/60Hz
• Catalog Description: INDUSTRIAL AREAMASTER HIGH LUMEN, FLOOD, 30K LUMEN, 5000K CCT, FROSTED GLASS, NEMA 7X7 347-480VAC
• Category: Led Floodlights
• Full Technical Description: 15.94 Inch Width X 5.13 Inch Depth Size; Architectural Bronze Polyester Finish; UL 1598/1598A/8750, ETL (Canada and Us), CSA (Canada and Us), CSA C22.2, CE Approval; Yoke Bracket Mounting; NEMA 3R/4/4X, IP66/67 Enclosure; LED Lamp Type; 219 Watt Lamp Wattage; Copper-Free Aluminum Housing Material; 347/480 Volt AC 50/60 Hertz Lamp/Ballast Voltage; NEMA 7 X 7 (Non-Optic) Distribution/Beam Spread; 2.45 Square Foot (90 Degree to Ground-Worst Case Mounting)/1.73 Square Foot (45 Degree to Ground-Standard Mounting) EPA; Industrial AREAMASTER[TM] Generation 2 Brand; Equivalent Wattage 1000 to 1500 Watt HID; Current Rating 0.64 Amp at 347 Volt AC, 0.47 Amp at 480 Volt AC; Intensity 25000 Lumen; Color Temperature 5000 Kelvin (Cool White); Color Rendering Index 70; Power Factor Greater Than 0.9; Efficacy 113 Lumen Per Watt; Lens Type Frosted Glass; Material Silicone Rubber (Gasket), Zinc Plated Steel (Yoke), Stainless
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Floodlight Fixture
• Unspsc: 39112102
• UPC 12 Digit: 781381104517
• SKU Name: app iamlhl2cf6bh

Resources

• Product Spec Sheet
