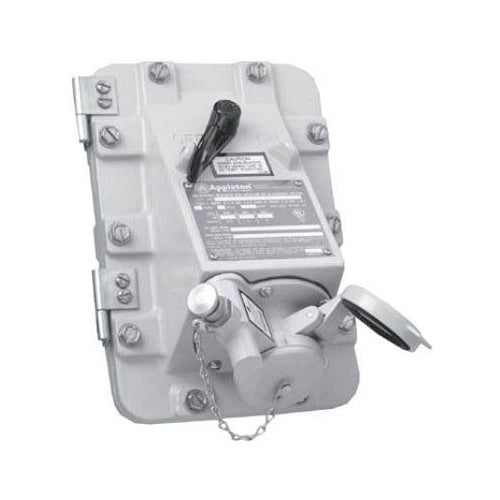

Appleton JBR3023150 Cover Assembly

Overview

Appleton JBR3023150 Cover Assembly

Product Specifications

• UPC: 78138163271
• Number Of Wires: 2
• Hub Size: 1-1/4 TO 1-1/2 INCH
• Box Type: SINGLE GANG
• Mating Plug: ACP, CPH
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7B/7C/7D/9F/9G
• Catalog Number: JBR3023150
• Brand Name: Appleton[R]
• Model: JBR
• Type: FEED THROUGH
• Voltage Rating: 240/480/600 VAC AT 50 TO 400 HZ
• Current Rating: 30 AMPERE
• Power Rating: 7.5 HP AT 240 VAC, 15 HP AT 480 VAC, 20 HP AT 600 VAC
• Number Of Poles: 3
• Catalog Description: JBR SERIES SWITCHED RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, WIRE SIZE: 10 - 4 AWG COPPER-ALUMINUM, AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, PHASE: 1 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, 7BCD, 9FG, MOUNTING: SURFACE MOUNT WITH 1-1/2 IN HUB, MOTOR HORSEPOWER: 20 HP AT 600 VAC, FINISH: EPOXY POWDER COAT, DIMENSIONS: 8-1/4 IN WIDTH X 13.07 IN HEIGHT X 10.28 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, CLASS III, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL LISTED: E10784, FOR ACP3023BC AND CPH3023B PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead Front Interlocked Type; 1-1/2 Inch Hub Size; 2 Wire(S); UL 894/1010/1203/1682/1686, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7BCD/9FG Enclosure; 30 Amp Current Rating; Flip/Screw Cover Type; 7.5 HP at 240 Volt AC, 15 HP at 480 Volt AC, 20 HP at 600 Volt AC Power Rating; 3 Pole(S); Acp, Cph Mating Plug; Overall Dimension 10.28 Inch Depth X 11.75 Inch Height; Wire Size 10 to 4 AWG; Material Epoxy Powder Coated Copper-Free Aluminum (Mounting Box/Receptacle); Includes 1-1/2 to 1-1/4 Inch Reducing Bushing; Application Lighting System, Heater, Motor Generator Set, Air Conditioner,
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381632713
• SKU Name: app jbr3023150
