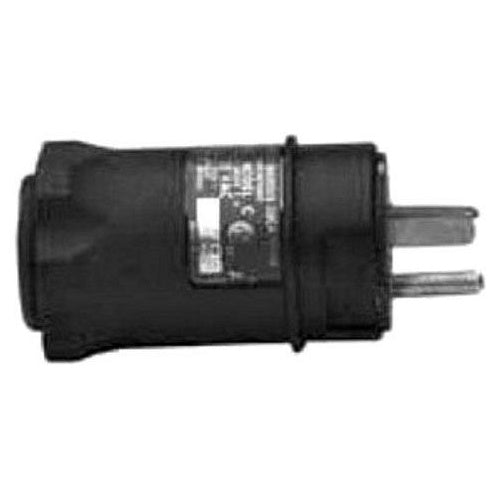

Appleton NCP1523 15A 2W-3P 125V Plug

Overview

Appleton NCP1523 15A 2W-3P 125V Plug

Product Specifications

• UPC: 78138150387
• Ground Type: Grounding
• Cord Size: 0.538 to 0.639 Inch
• Material: Glass Reinforced Thermoplastic Polyester
• Catalog Number: NCP1523
• Brand Name: U-Line[R], Interchanger[TM]
• Type: Polarized
• Constructional Feature: Explosionproof, Dust Ignitionproof, Watertight
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: APPLETON U-LINE NCP PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 15 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: 30 PCT GLASS-REINFORCED THERMOPLASTIC POLYESTER, NEMA RATING: NEMA 7BCD, 9G, PLUG CABLE DIAMETER: 0.538 - 0.639 IN, DIMEN
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: 30 Percent Glass Reinforced Thermoplastic Polyether Material; NEMA 5-15P Configuration; 2 Wire(S); 125 Volt AC Voltage Rating; 15 Amp Current Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof, Water Tight; 0.538 to 0.639 Inch Cord Size; U-LINE[TM] Brand; Enclosure Rating Class I, Div 1 and 2 Groups B, C, D, Class II Div 1 and 2 Groups F, G, Class III; Application Hazardous Location; Applicable Standard Nec/Cec; NCP Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381503877
• SKU Name: app ncp1523

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
