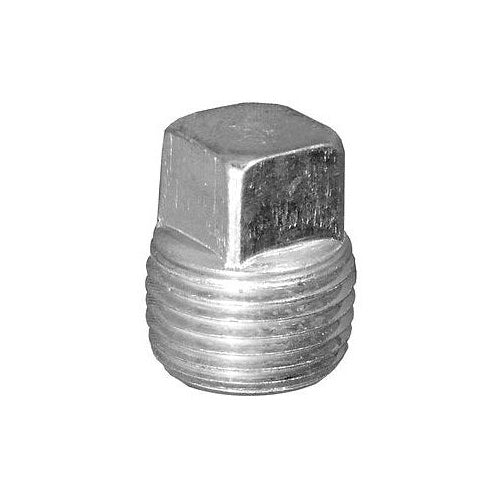

Appleton PLG-50S 1/2" Square Head Plug

Overview

Appleton PLG-50S 1/2" Square Head Plug

Product Specifications

• UPC: 78138165190
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Used On: Threaded Rigid Metal Conduit and IMC
• Approval: UL 886, CSA C22.2
• Additional Information: APPLICABLE STANDARD NEC 501-4(A), NEC 501-4(B)
• Catalog Number: PLG-50S
• Brand Name: Unilet[R]
• Model: PLG
• Type: Threaded
• Head Style: Square
• Trade Size: 1/2 Inch
• Material: Steel
• Finish: Zinc Electroplated
• Catalog Description: UNILETS SQUARE HEAD CLOSE-UP PLUG, SIZE: 1/2 IN, MATERIAL: STEEL, FINISH: ZINC ELECTROPLATE, CONNECTION: TAPERED MNPT, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 25 AND 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS A, B
• Category: Bar Hangers & Outlet Box Accy
• Full Technical Description: Threaded Type; Steel Material; Mechanically Galvanized Finish; Imc/Threaded Rigid Metal Conduit Used on; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Square Head Style; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Imc/Rigid Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; PLG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Closure Plug
• Unspsc: 39121311
• UPC 12 Digit: 781381651905
• SKU Name: app plg50s

Resources

• Manufacturer Spec Sheet
