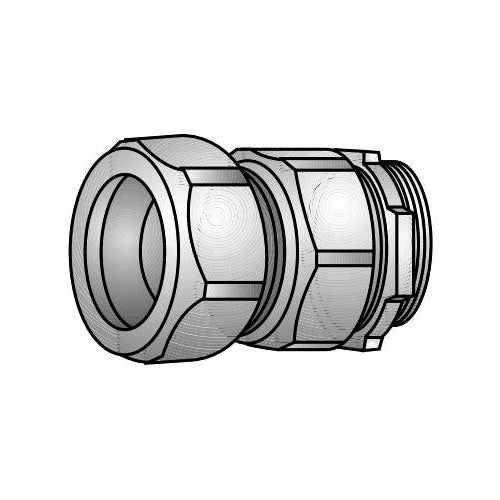

Appleton RNTC-75 3/4" No-Thread Conduit Connector

Overview

Appleton RNTC-75 3/4" No-Thread Conduit Connector

Product Specifications

• UPC: 78138166195
• Constructional Feature: Concrete Tight
• Approval: UL 514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Application Commercial, Industrial; Applicable Standard NEMA FB-1
• Catalog Number: RNTC-75
• Type: Compression, Threadless
• Throat Type: Insulated
• Trade Size: 3/4 Inch
• Diameter: 0.44 Inch
• Length: 0.88 Inch
• Thread Length: 1.56 Inch
• Material: Zinc Electroplated Malleable Iron
• Catalog Description: INSULATED COMPRESSION CONNECTOR, SIZE: 3/4 IN, CONNECTION: MALE THREADED X COMPRESSION, MATERIAL: STEEL, LENGTH: 1.26 IN, THREAD LENGTH: 0.38 IN, DIAMETER: 1.31 IN, STANDARD: UL 514B, NEMA FB-1, FOR USE TO SECURE AND TERMINATE STEEL EMT TO KNOCKOUTS AND CONCRETE TIGHT BOX
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Compression, Threadless Type; Zinc Electroplated Malleable Iron Material; 1.32 Inch; Imc/Rigid Metal Conduit Used on; 0.44 Inch Thread Length; UL 514B, CSA C22.2 Approval; 1.56 Inch Diameter; 3/4 Inch Trade Size; Concrete Tight; Insulated Throat Type; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 781381661959
• SKU Name: app rntc75

Resources

• Manufacturer Spec Sheet
