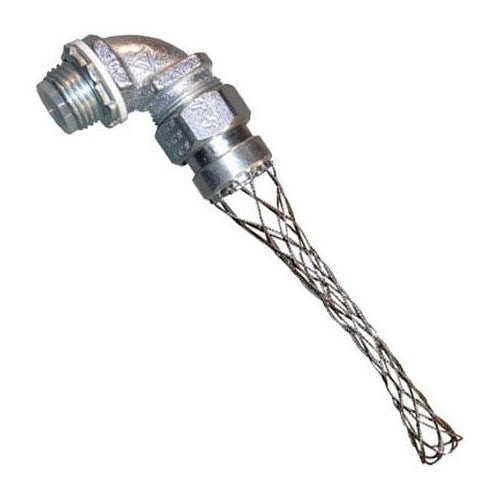

Appleton STB-90100SR 1" 90D Insulated Liquidtight Connector

Overview

Appleton STB-90100SR 1" 90D Insulated Liquidtight Connector

Product Specifications

• UPC: 78138151392
• Used On: Liquidtight Flexible Metal Conduit
• Additional Information: Applicable Standard NEMA FB-1; Size 1.88 Inch Dia; Thread Length 1.81 Inch; Application Commercial
• Catalog Number: STB-90100SR
• Model: STB
• Trade Size: 1 Inch
• Connector Type: 90 Deg
• Connector Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Throat Type: Insulated
• Mesh Material: Stainless Steel
• Approval: UL 514B, CSA C22.2
• Catalog Description: STB SERIES 90 DEG LIQUIDTIGHT CONNECTOR WITH WIRE MESH STRAIN RELIEF, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: CHROMATE, EPOXY POWDER COAT/ZINC ELECTROPLATED, INSULATION: INSULATED THROAT, THREAD LENGTH: 3/4 IN, OUTSIDE DIAMETER:
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 90 Degree Connector Type; 1 Inch Trade Size; Insulated Throat Type; Stainless Steel Mesh Material; Zinc Electroplated Steel Connector Material; Outside Diameter 1.29 to 1.32 Inch; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; STB-SR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector with Grip
• Unspsc: 39121420
• UPC 12 Digit: 781381513920
• SKU Name: app stb90100sr
