Appleton STNM-38 3/8 Straight Cn-P Liquidtight Connector

Overview

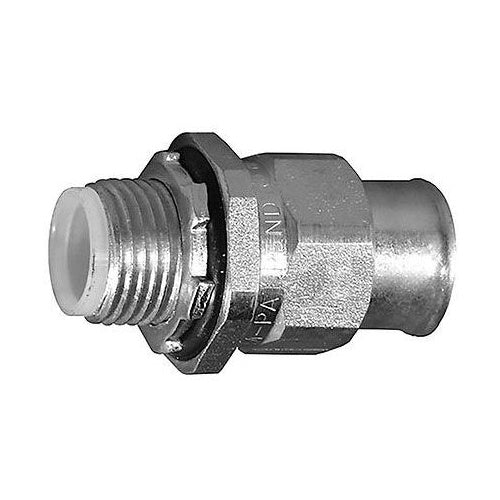

Appleton STNM-38 3/8 Straight Cn-P Liquidtight Connector

Product Specifications

• UPC: 78138123877
• Additional Information: Size 1.16 Inch Dia
• Catalog Number: STNM-38
• Model: STNM
• Type: Straight
• Throat Type: Insulated
• Trade Size: 3/8 Inch
• Material: Steel Body/Compression Nut/Sleeve, Neoprene O-Ring, Nylon Ferrule
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Non-Metallic Liquidtight Type A Conduit
• Catalog Description: APPLETON STNM SERIES STRAIGHT LIQUIDTIGHT CONNECTOR, SIZE: 3/8 IN, MATERIAL: STEEL, INSULATION: INSULATED THROAT, DIMENSIONS: 2.16 IN LENGTH X 1.16 IN HEIGHT, THREAD LENGTH: 0.59 IN, STANDARD: CLASS I, DIVISION 2, UL 514B, E14814, CSA C22.2 NO. 18
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 3-Piece, Straight Type; Zinc Plated Steel (Body/Compression Nut/Sleeve), Neoprene (O-ring), Nylon (Ferrule), Stainless Steel (Wire Mesh) Material; Type A Liquid Tight Flexible Non-Metallic Conduit Used on; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; Insulated Throat Type; Liquidtight STNM[TM] Brand; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec; STNM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381238779
• SKU Name: app stnm38
