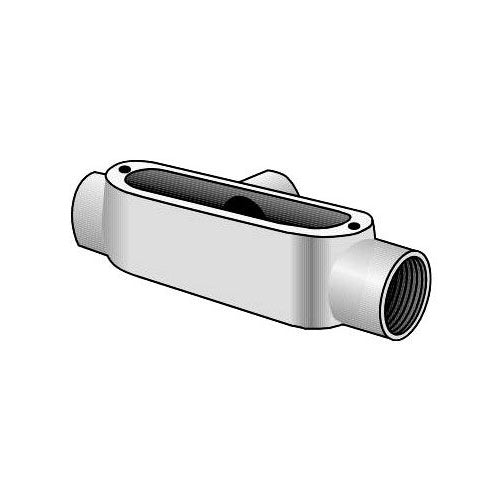

Appleton T100T-A 1" Aluminum T-Type Body

Overview

Appleton T100T-A 1" Aluminum T-Type Body

Product Specifications

• UPC: 78138168745
• Size: 6.69 Inch L x 1.88 Inch H
• Installation: Set Screw
• Material: Epoxy Powder Coated Pressure Cast Copper Free Aluminum
• Form Type: Form 85
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 11.8 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conduc
• Catalog Number: T100T-A
• Brand Name: Unilet[R], Form 85[TM]
• Access Opening: Side
• Configuration: T
• Cover Type: Epoxy Powder Coated Cast Aluminum
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1 Inch
• Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1 IN, FORM: 85, LENGTH: 6.69 IN, HEIGHT: 1.88 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: SET-SCREW, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527,
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 6.69 Inch Length X 1.88 Inch Height Size; EMT Conduit Used on; 1 Inch Hub Size; Set Screw Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 4 AWG; Capacity 11.8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381687454
• SKU Name: app t100ta

Resources

• Manufacturer Spec Sheet
