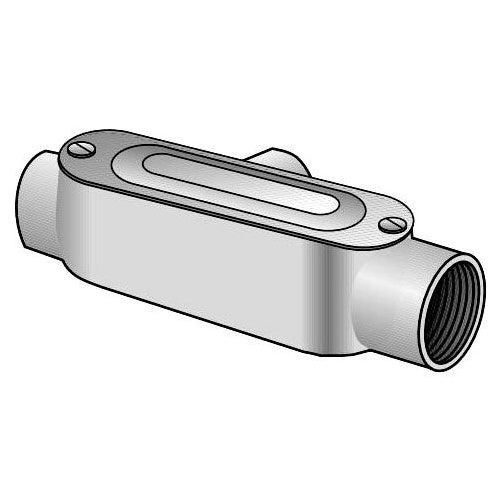

Appleton T-200ACGA Aluminum Conduit Outlet Body

Overview

Appleton T-200ACGA Aluminum Conduit Outlet Body

Product Specifications

• UPC: 78138182616
• Hub Size: 2 Inch
• Size: 10.81 Inch Length x 3.44 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum (Body), Neoprene/Fiber (Gasket), Stainless Steel (Screw)
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 70 Cubic Inch; Includes Cover and Gasket; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: T-200ACGA
• Brand Name: Appleton
• Model: T
• Access Opening: Side
• Configuration: T
• Cover Type: Aluminum/Malleable Iron/Steel
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 2 IN, FORM: 85, LENGTH: 10.81 IN, HEIGHT: 3.44 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, S
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 10.81 Inch Length X 3.44 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 2/0 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381826167
• SKU Name: app t200acga
