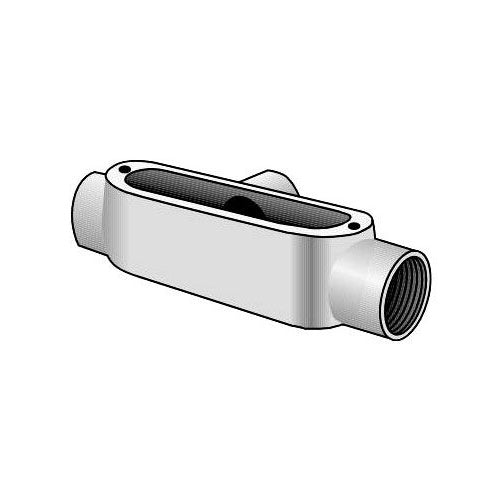

Appleton T50A 1/2" Aluminum T-Type Conduit Body

Overview

Appleton T50A 1/2" Aluminum T-Type Conduit Body

Product Specifications

• UPC: 78138168680
• Hub Size: 1/2 Inch
• Size: 4.75 Inch Length x 1.38 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Pressure Cast Copper-Free Aluminum (Body), Neoprene/Fiber (Gasket), Stainless Steel (Screw)
• Form Type: Form 85
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Capacity 4 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
• Catalog Number: T50A
• Brand Name: Appleton
• Model: T
• Access Opening: Side
• Configuration: T
• Cover Type: Aluminum/Malleable Iron/Steel
• Hub Location: Tee
• Number Of Hubs: 3
• Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 85, LENGTH: 4-3/4 IN, HEIGHT: 1.38 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 4.75 Inch Length X 1.38 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Capacity 4 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381686808
• SKU Name: app t50a

Resources

• Manufacturer Spec Sheet
