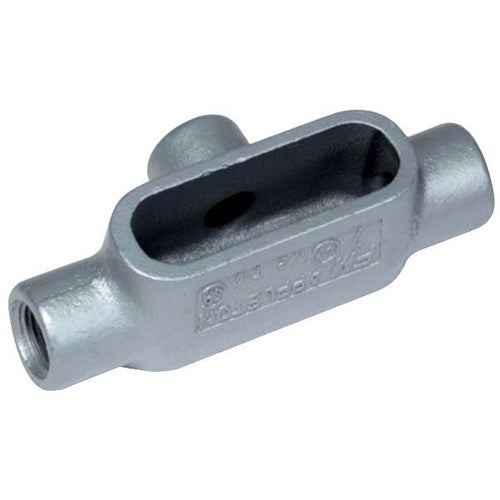

Appleton T58 1-1/2" Conduit Body

Overview

Appleton T58 1-1/2" Conduit Body

Product Specifications

• UPC: 78138174435
• Size: 10.38 Inch Length x 4.03 Inch Width x 2.78 Inch Height
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy-Iron Body, Stainless Steel Cover Screw, Neoprene Gasket
• Form Type: From 8
• Approval: UL 514A, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: FEDERAL SPECIFICATION W-C-586B
• Catalog Number: T58
• Brand Name: Unilet[R]
• Access Opening: Side
• Configuration: T
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy-Iron
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 1-1/2 Inch
• Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 8, LENGTH: 10.38 IN, WIDTH: 4.03 IN, HEIGHT: 2.78 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY,
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 10.38 Inch Length X 4.03 Inch Width X 2.78 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 8 Form Type; Side Access Opening; FM8[TM] Brand; Wire Size (3) 1/0 AWG, (3) 1 AWG; Capacity 44 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381744355
• SKU Name: app t58
