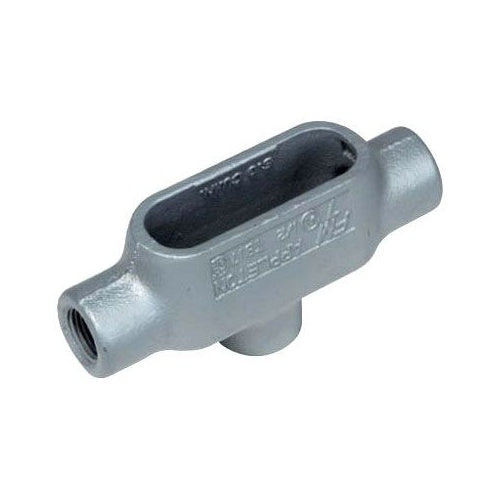

Appleton TB47 1-1/4" TB-Type Conduit Body

Overview

Appleton TB47 1-1/4" TB-Type Conduit Body

Product Specifications

• UPC: 78138150729
• Size: 7.44 Inch L x 2.19 Inch W x 3.31 Inch H
• Installation: Threaded
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron Body, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL 514A/B, CSA C22.2, NEC, CEC
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 20 Cu Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance
• Catalog Number: TB47
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Back
• Configuration: TB
• Cover Type: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron
• Hub Location: Tee Back
• Number Of Hubs: 3
• Hub Size: 1-1/4 Inch
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1-1/4 IN, FORM: 7, LENGTH: 7.44 IN, WIDTH: 2.19 IN, HEIGHT: 3.31 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION:
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 7.44 Inch Length X 2.19 Inch Width X 3.31 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 3 AWG; Capacity 20 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381507295
• SKU Name: app tb47
