Appleton TCCD-125200G 2" Conduit Tray ClAMP

Overview

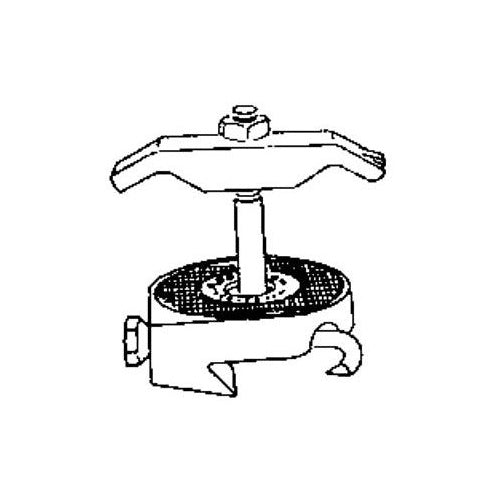

Appleton TCCD-125200G 2" Conduit Tray Clamp

Product Specifications

• UPC: 78138162137
• Catalog Number: TCCD-125200G
• Brand Name: Appleton.
• Model: TCCD
• Type: CONDUIT TO CABLE TRAY FLANGE, DOUBLE SUPPORTING CLAMP
• Additional Information: CONDUIT RIGID SIZE 1-1/4 INCH, 1-1/2 INCH, 2 INCH; MATERIAL HOT DIPPED GALVANIZED FINISHED MALLEABLE IRON
• Catalog Description: RIGID CONDUIT CABLE TRAY CLAMP, TYPE CABLE TRAY FLANGE, DOUBLE SUPPORTING CLAMP, USED ON CONDUIT CABLE TRAY, CONDUIT RIGID SIZE 1-1/4 INCH, 1-1/2 INCH, 2 INCH, MATERIAL HOT DIPPED GALVANIZED FINISHED MALLEABLE IRON
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron (Clamp/Base), Steel (Nut/Bolt) Material; Hot Dip Galvanized (Clamp/Base), Mechanically Galvanized (Nut/Bolt) Finish; 360 Degree Swivel Installation; UL 467 Approval; 1-1/4 Inch, 1-1/2 Inch, 2 Inch Conduit Size; Application Commercial/Industrial; Applicable Standard NEC; TCCD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit to Tray Clamp
• Unspsc: 39131705
• UPC 12 Digit: 781381621373
• SKU Name: app tccd125200g

Resources

• Manufacturer Spec Sheet
