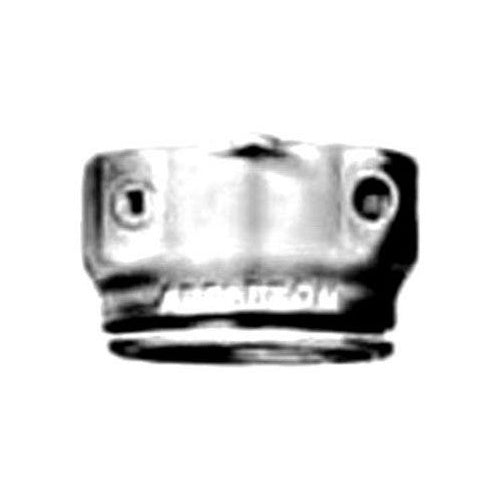

Appleton VXHA-50 1/2" Vaportite Fixture

Overview

Appleton VXHA-50 1/2" Vaportite Fixture

Product Specifications

• UPC: 78138174080
• Enclosure: Class I DIV 2 Group A B C D, Class II DIV 1 and 2 Group E F G, Class III
• Approval: UL 844/1598/1598-A
• Catalog Number: VXHA-50
• Brand Name: Unilet[R], Mercmaster[TM]
• Type: Ceiling
• Number Of Hubs: 5
• Number Of Plugs: 4
• Hub Size: 1/2 Inch
• Material: Malleable Iron
• Finish: Electrostatically Applied Epoxy Powder Coated
• Catalog Description: UNILETS MOUNTING HOOD, SIZE: 1/2 IN HUB, MATERIAL: MALLEABLE IRON, LAMP TYPE: HIGH PRESSURE SODIUM, MOUNTING: CEILING, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE, EPOXY POWDER COAT), FOR MERCMASTER JR. LUMINAIRES
• Category: Lighting Accessories
• Full Technical Description: Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; V-51 Incandescent Luminaire Used on; 1/2 Inch Hub Size; 5 Hub(S); Ceiling Mounting; Number of Plugs 4; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class III, NEMA 3R; Application Hazardous/Wet Location; Used With Threaded Metal Conduit; Applicable Standard UL, CSA, Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Vaporproof Incandescent Fixture Mounting Hood
• Unspsc: 39111817
• UPC 12 Digit: 781381740807
• SKU Name: app vxha50

Resources

• Manufacturer Spec Sheet
