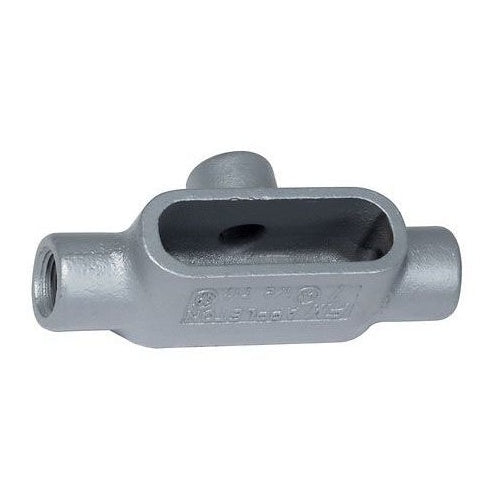

Appleton ll17

Overview

LL17 - 1/2" LL FM7 Cond Body

Product Specifications

• Catalog Number: LL17
• UPC / GTIN: 781381506816
• Manufacturer: Appleton
• UNSPSC: 39131708 - Electrical conduit fitting body
• Full Technical Description: FM7 UNILETS Type LL Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 4.56 IN, Width: 2-1/4 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered Female Th
• Connection: Tapered Female Threaded
• Color: Gray
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Hub Size: 1/2
• Length: 4.56
• Width: 2-1/4
• Description: 1/2" LL FM7 COND BODY
• Extra Long Description: APP LL17 1/2 FM7 BODY
• Long Description: FM7 UNILETS Type LL Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 4.56 IN, Width: 2-1/4 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered Female Th
• Product Type: 1/2 FM7 Body
• Special Features: Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity;Allow connections for branch runs;Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers;Connect and change direction of conduit runs;Equivalent FM7 and Form 7 units have identical applications and installation dimensions;Fits flush and snug against flat surfaces for more stable installation;Flat back design provides greater cubic content for easier wire pulling and more room for splicing;Hub
• Form: 7
• GTIN: 00781381506816
• UPC: 781381506816
• Type: Type LL Conduit Outlet Body
• Weight per each: 0.94
• Carton: 10
• Package: 50
• Application: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
