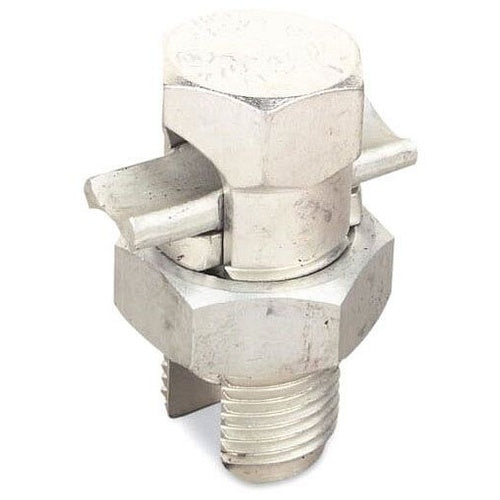

Blackburn APS04 Aluminum Split - Bolt 4 - 10 Awg

Overview

Blackburn APS04 Aluminum Split - Bolt 4 - 10 Awg

Product Specifications

• UPC: 78378620141
• Maximum Tap Conductor Size: 4 AWG Stranded
• Material: Tin Plated Corrosion Resistant Aluminum
• Approval: UL E9809/486B, CSA
• Additional Information: Overall Dimension 1-1/4 Inch Length x 25/32 Inch Width x 1.48 Inch Height; Application Splicing, Tapping or Terminating Conductor in Power and Grounding Electrical Connection
• Catalog Number: APS04
• Model: APS
• Type: Split-Bolt
• Installation: Split-Bolt with Wrench
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 10 AWG Stranded
• Maximum Run Conductor Size: 4 AWG Stranded
• Minimum Tap Conductor Size: 10 AWG Stranded
• Catalog Description: TYPE APS TIN-PLATED ALUMINUM DUAL-RATED SPLIT-BOLT CONNECTOR FOR USE ON COPPER, ALUMINUM CONDUCTORS. CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 4-10 STR.
• Category: Large Terminals & Connectors
• Full Technical Description: Split-Bolt Type; Tin Plated Corrosion Resistant Aluminum Material; 10 AWG Stranded min. Run Conductor Size; 4 AWG Stranded Max. Run Conductor Size; 10 AWG Stranded min. Tap Conductor Size; 4 AWG Stranded Max. Tap Conductor Size; Split-Bolt With Wrench Installation; Aluminum/Copper Conductor Material; UL E9809/486B, CSA Approval; Overall Dimension 1-1/4 Inch Length X 25/32 Inch Width X 1.48 Inch Height; Application Splicing, Tapping or Terminating Conductor in Power and Grounding Electrical Connection; APS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786201419
• SKU Name: aps04 blackburn
