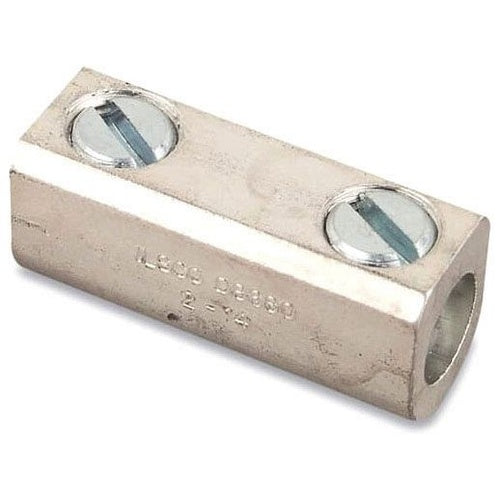

Blackburn ASR0214 14-2 Aluminum/Copper Screw Splice

Overview

Blackburn ASR0214 14-2 Aluminum/Copper Screw Splice

Product Specifications

• UPC: 78378613321
• Size: 1-1/4 Inch Length x 33/64 Inch Width x 39/64 Inch Height
• Body Material: Tin Plated Aluminum
• Insulation Type: Non-Insulated
• Approval: UL 486B, CSA
• Additional Information: Includes Solid Barrier Wire Stop
• Catalog Number: ASR0214
• Brand Name: Blackburn
• Model: ASR-ALCUL
• Type: Dual-Rated, Splice Reducer
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 2 AWG Stranded
• Conductor Material: Aluminum/Copper
• Number Of Screws: 2
• Catalog Description: TYPE ASR-ALCUL SPLICE REDUCER WITH SOLID BARRIER WIRE STOP FOR CONDUCTOR RANGE MAX 2 STR., MIN 14 AWG
• Category: Large Terminals & Connectors
• Full Technical Description: Dual-Rated, Splice Reducer Type; 1-1/4 Inch Length X 33/64 Inch Width X 39/64 Inch Height Size; 14 AWG min. Conductor Size; 2 AWG Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; Tin Plated Aluminum Body Material; Non-Insulated Insulation Type; 2 Screw(S); Asr-ALCUL[TM] Brand; Includes Solid Barrier Wire Stop; ASR-ALCUL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783786133215
• SKU Name: asr0214 blackburn
