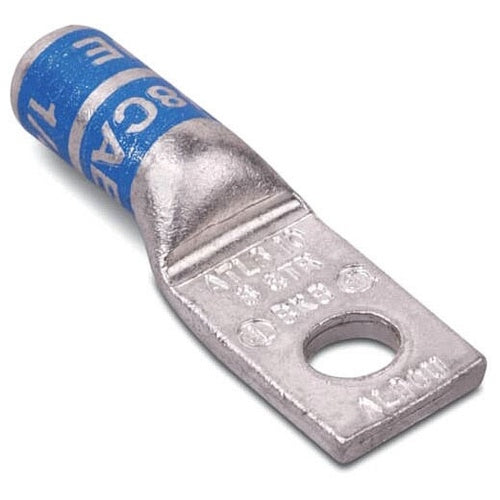

Blackburn ATL2-14 2Str Aluminum/Copper Compression Lug

Overview

Blackburn ATL2-14 2Str Aluminum/Copper Compression Lug

Product Specifications

• UPC: 78378661082
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Pink
• Die Index: 42, 99
• Material: Tin Plated Seamless Aluminum
• Overall Length: 1-15/16 Inch
• Approval: UL, CSA
• Catalog Number: ATL2-14
• Model: ATL
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 2 AWG Stranded
• Barrel Type: Standard, Straight
• Barrel Length: 27/32 Inch
• Pad Size: 25/32 Inch L x 23/32 Inch W x 3/16 Inch Thk
• Catalog Description: TYPE ATL ALUMINUM ONE-HOLE LUG, MAX 35KV, WIRE SIZE 2 STR, 1/4 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Aluminum Material; Pink Color; 1-15/16 Inch Overall Length; 27/32 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 2 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 42, 99 Die Index; 25/32 Inch L X 23/32 Inch W X 3/16 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; ATL Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786610822
• SKU Name: atl214 blkbrn
