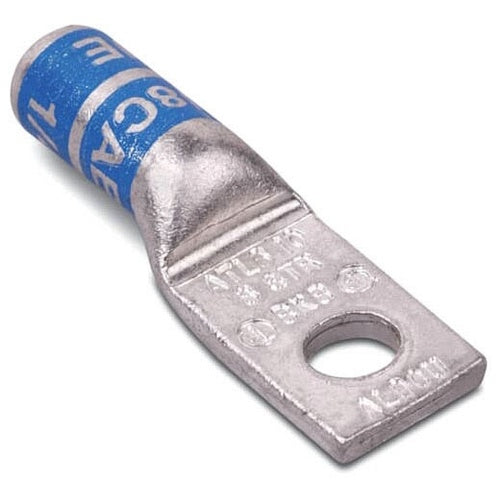

Blackburn ATL500-12 500 Aluminum/Copper Compression Lug

Overview

Blackburn ATL500-12 500 Aluminum/Copper Compression Lug

Product Specifications

• UPC: 78378661112
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 42, 99
• Material: Tin Plated Seamless Aluminum
• Overall Length: 4-15/16 Inch
• Approval: UL, CSA
• Catalog Number: ATL500-12
• Model: ATL
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Standard, Straight
• Barrel Length: 2-11/16 Inch
• Pad Size: 1-1/4 Inch L x 1-25/32 Inch W x 3/8 Inch Thk
• Catalog Description: TYPE ALUMINUM ONE-HOLE LUG, MAX 35KV, WIRE SIZE 500 KCMIL, 1/2 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Aluminum Material; Pink Color; 4-15/16 Inch Overall Length; 2-11/16 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; 42, 99 Die Index; 1-1/4 Inch L X 1-25/32 Inch W X 3/8 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; ATL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786611126
• SKU Name: atl50012 blkbrn
