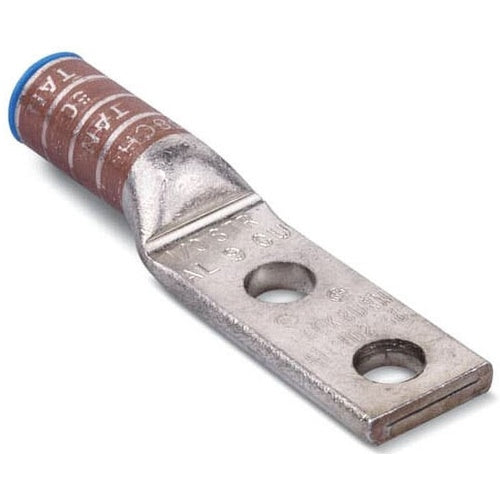

Blackburn ATL5002 500 Aluminum/Copper Compression Lug

Overview

Blackburn ATL5002 500 Aluminum/Copper Compression Lug

Product Specifications

• UPC: 78378661122
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 42H, 99H
• Material: Tin Plated Seamless Aluminum
• Overall Length: 6-11/16 Inch
• Approval: UL, CSA
• Catalog Number: ATL5002
• Model: ATL
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Standard, Straight
• Barrel Length: 2-11/16 Inch
• Pad Size: 3 Inch L x 1-25/32 Inch W x 3/8 Inch Thk
• Catalog Description: TYPE ALUMINUM TWO-HOLE LUG, MAX 35KV, WIRE SIZE 500 KCMIL, 1/2 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Aluminum Material; Pink Color; 6-11/16 Inch Overall Length; 2-11/16 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 500 kcmil Conductor Size; 1/2 Inch Stud Size; 42H, 99H Die Index; 3 Inch L X 1-25/32 Inch W X 3/8 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Standard, Straight Barrel Type; ATL Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786611225
• SKU Name: atl5002 blackburn

Resources

• Material Safety Data Sheet (MSDS)
• Manufacturer Spec Sheet
