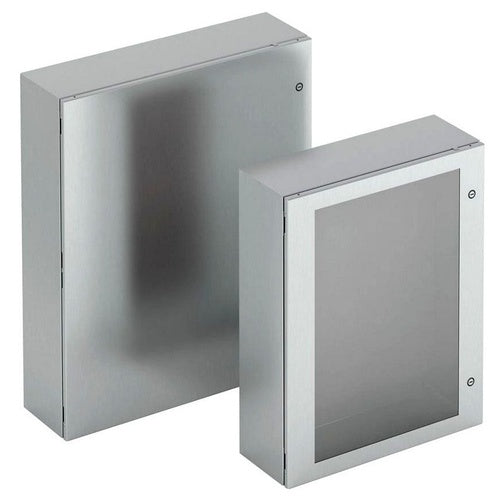

B-Line 24308-SD Type 4/12 Single Solid Door Enclosure, 24X30X8

Overview

B-Line 24308-SD Type 4/12 Single Solid Door Enclosure, 24X30X8

Product Specifications

• UPC: 78205109194
• Width In Inch: 30
• Depth: 8 INCH
• Material: STEEL
• Material Specification: 16 GAUGE BODY, 14 GAUGE DOOR
• Color: ANSI 61 GRAY
• Finish: POLYESTER POWDER COATED OVER PHOSPHATIZED SURFACE
• Cover Type: SPRING LOADED HIDDEN HINGE, FOAM GASKETED, SLOTTED QUARTERTURN LATCH
• Back Panel: 3024P
• Enclosure: NEMA 4/12, IP66
• Mounting: FEET, WALL
• Catalog Number: 24308-SD
• Service Type: INDOOR/OUTDOOR
• Approval: UL 508, CUL
• Height In Inch Uom: in
• Height In Mm Uom: mm
• Width In Inch Uom: in
• Additional Information: APPLICABLE STANDARD IEC 529; APPLICATION ELECTRICAL CONTROL AND INSTRUMENT; ENVIRONMENTAL CONDITIONS CIRCULATING DUST, DRIPPING NON CORROSIVE LIQUID, FALLING DIRT, HOSE DIRECTED WATER, RAIN, SPLASHING WATER, WINDBLOWN DUST; INCLUSION GROUNDING HARDWARE, P
• Brand Name: B-Line.
• Model: PREMIER
• Type: ONE DOOR
• Height: 24 INCH
• Height In Inch: 24
• Height In Mm: 609.6
• Width: 30 INCH
• Catalog Description: EATON B-LINE SERIES TYPE 4 PANEL ENCLOSURE,24"HEIGHT,8"LENGTH,30"WIDTH,NEMA 4,HINGED COVER,SD ENCLOSURE,WALL MOUNT,MEDIUM SINGLE DOOR,THRU HOLES,OPTIONAL EXTERNAL MOUNTING FEET,CARBON STEEL,SEAMLESS POURED IN-PLACE GASKET
• Category: Nema Types 4 & 12 Metallic Enclosures, Boxes, Cabinets
• Full Technical Description: One Door Type; Steel Material; Polyester Powder Coated Over Phosphatized Surface Finish; ANSI 61 Gray Color; 30 Inch; 30 Width in Inch; 24 Inch; 24 Height in Inch; 8 Inch; 609.6 Height in mm; UL 508, CUL Approval; Feet, Wall Mounting; NEMA 4/12, IP66 Enclosure; Spring Loaded Hidden Hinge, Foam Gasketed, Slotted Quarterturn Latch Cover Type; 16 Gauge Body, 14 Gauge Door Material Specification; Indoor/Outdoor Service Type; 3024P Back Panel; B-Line. Brand; Applicable Standard IEC 529; Application Electrical Control and Instrument; Environmental Conditions Circulating Dust, Dripping Non Corrosive Liquid, Falling Dirt, Hose Directed Water, Rain, Splashing Water, Windblown Dust; Inclusion Grounding Hardware, P; Height in Inch - Uom in; Height in mm - Uom mm; Width in Inch - Uom in; PREMIER Model
• Manufacturer: EATON B-LINE PRODUCTS
• Manufacturer Brand: Eaton B-Line Products
• Sub Category: Multipurpose Wall Mount Enclosure
• Unspsc: 39121324
• UPC 12 Digit: 782051091946
• SKU Name: bline 24308sd
