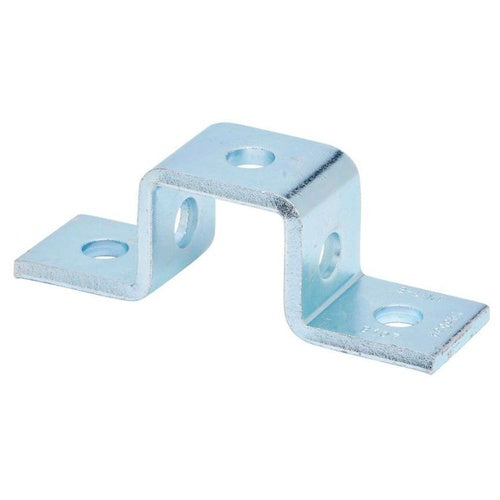

B-Line B107HDG 5-Hole U-Support, Hd Galvanized

Overview

B-Line B107HDG 5-Hole U-Support, Hd Galvanized

Product Specifications

• UPC: 78101150105
• Process: Hot Rolled Pickled and Oiled
• Finish: Hot Dip Galvanized
• Thickness: 7/32 Inch
• Size: 5-7/16 Inch Length
• Weight: 0.839 Pound
• Used On: Strut
• Additional Information: Hole Spacing Size 1-7/8 Inch (On Center), 13/16 Inch (From End)
• Catalog Number: B107HDG
• Model: B107
• Type: U Support
• Channel Depth: 1-5/8 Inch
• Channel Width: 1-5/8 Inch
• Number Of Holes: 5
• Hole Size: 9/16 Inch Diameter
• Material: ASTM A123 Carbon Steel
• Catalog Description: EATON B-LINE SERIES U-SUPPORT, 1.62" H X 5.43" L X 1.62" W, STEEL, HOT-DIPPED GALVANIZED FINISH, 1/4" GAUGE, FIVE HOLE U SUPPORT
• Category: Channel & Strut Fittings
• Full Technical Description: U Support Type; ASTM A123 Carbon Steel Material; 5-7/16 Inch Length Size; Hot Dip Galvanized Finish; Strut Used on; 1-5/8 Inch Channel Width; 7/32 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.839 Pound Weight; 5 Hole(S); 9/16 Inch Diameter Hole Size; 1-5/8 Inch Channel Depth; Hole Spacing Size 1-7/8 Inch (on Center), 13/16 Inch (From End); B107 Model
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut U Fitting
• Unspsc: 39121311
• UPC 12 Digit: 781011501051
• SKU Name: bline b107hdg
