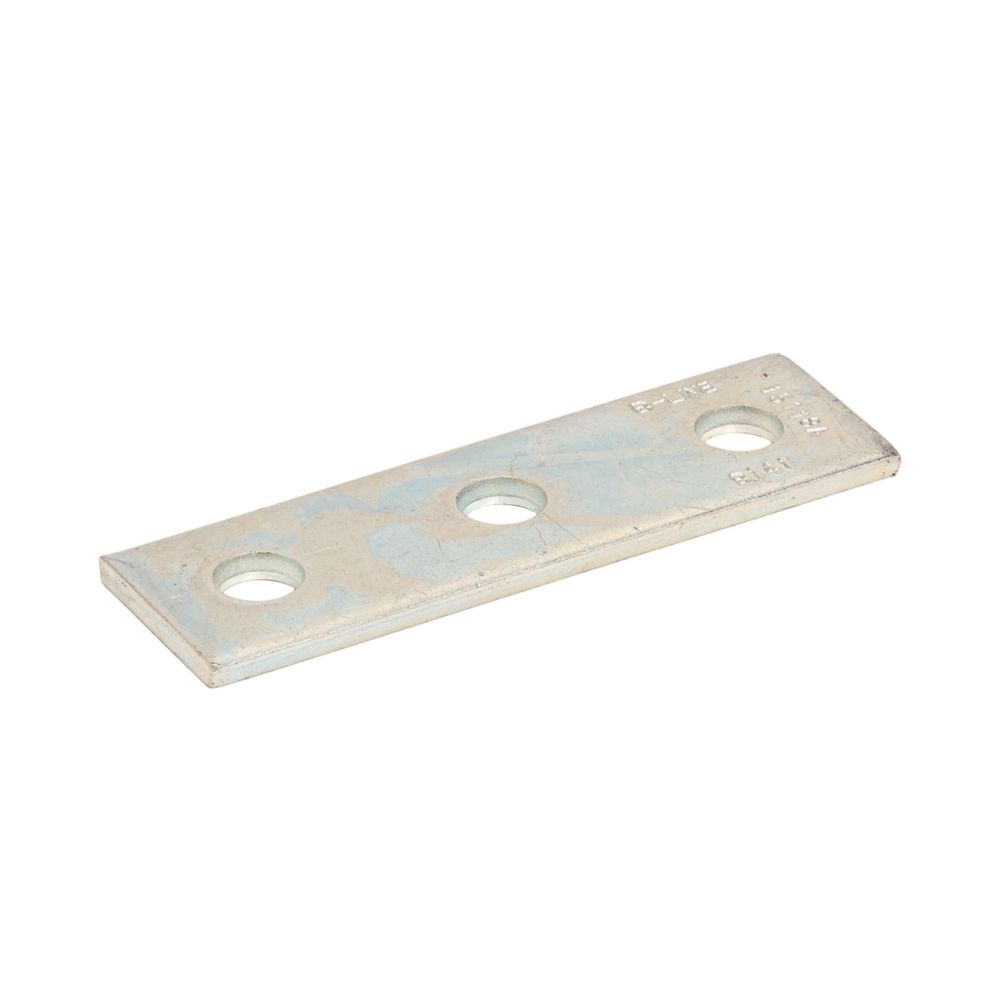

B-Line B141ZN 3-Hole Splice Plate, Zinc Plated

Overview

B-Line B141ZN 3-Hole Splice Plate, Zinc Plated

Product Specifications

• UPC: 78101150443
• Material: ASTM B633 SC3 Type III/ASTM A653 Carbon Steel
• Process: Hot Rolled Pickled and Oiled
• Finish: Zinc Electroplated
• Weight: 0.546 Pound
• Additional Information: Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center)
• Catalog Number: B141ZN
• Model: B141
• Type: Splice
• Number Of Holes: 3
• Hole/Slot Size: 9/16 Inch Diameter
• Length: 5-3/8 Inch
• Thickness: 7/32 Inch
• Channel Width: 1-5/8 Inch
• Catalog Description: EATON B-LINE SERIES SPLICE PLATE, 0.23" H X 5.37" L X 1.62" W, STEEL, ELECTRO-PLATED, 1/4" GAUGE
• Category: Channel & Strut Fittings
• Full Technical Description: Splice Type; ASTM B633 SC3 Type Iii/Astm A653 Carbon Steel Material; Zinc Electroplated Finish; 5-3/8 Inch; 1-5/8 Inch Channel Width; 7/32 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.546 Pound Weight; 3 Hole(S); 9/16 Inch Diameter Hole/Slot Size; Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center); B141 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011504434
• SKU Name: bline b141pltd
