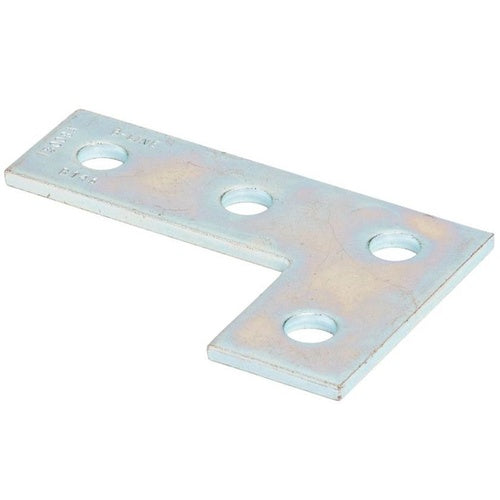

B-Line B143HDG 4-Hole Corner Plate, Hot Dip Galvanized

Overview

B-Line B143HDG 4-Hole Corner Plate, Hot Dip Galvanized

Product Specifications

• UPC: 78101150464
• Channel Width: 1-5/8 Inch
• Material: ASTM A1018/A123 Steel
• Process: Hot Rolled Pickled Oiled
• Finish: Hot Dip Galvanized
• Additional Information: End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Excludes Nut and Bolt; Application Electrical, Mechanical, Industrial
• Catalog Number: B143HDG
• Model: B143
• Type: Corner
• Applicable Standard: ISO 9001
• Number Of Holes: 4
• Hole/Slot Size: 9/16 Inch Dia Hole
• Length: 5-3/8 Inch
• Thickness: 7/32 Inch
• Catalog Description: EATON B-LINE SERIES CORNER PLATE, 0.22" H X 5.37" L X 3.5" W, STEEL, HOT-DIPPED GALVANIZED
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Type; ASTM A1018/A123 Steel Material; Hot Dip Galvanized Finish; 5-3/8 Inch; 1-5/8 Inch Channel Width; ISO 9001 Applicable Standard; 7/32 Inch Thickness; Hot Rolled Pickled Oiled Process; 4 Hole(S); 9/16 Inch Dia Hole Hole/Slot Size; End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Excludes Nut and Bolt; Application Electrical, Mechanical, Industrial; B143 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011504649
• SKU Name: bline b143hdg
