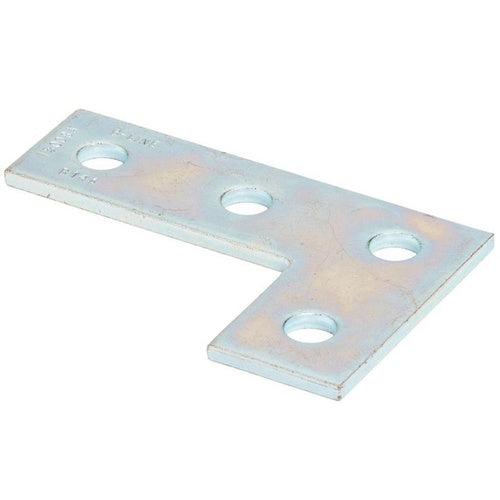

B-Line B143SS4 4-Hole Corner Plate, Stainless Steel 304

Overview

B-Line B143SS4 4-Hole Corner Plate, Stainless Steel 304

Product Specifications

• UPC: 78101150465
• Thickness: 7/32 Inch
• Channel Width: 1-5/8 Inch
• Material: ASTM A240 304 Stainless Steel
• Process: Hot Rolled, Pickled and Oiled
• Weight: 75 Pound per Carton
• Additional Information: Hole Spacing Size 1-7/8 Inch (On-Center), 13/16 Inch (From End); Excludes Nut and Bolt
• Catalog Number: B143SS4
• Brand Name: Cooper B-Line
• Model: B143
• Type: Plates
• Number Of Holes: 4
• Hole/Slot Size: 9/16 Inch Diameter
• Length: 5-3/8 Inch
• Width: 3-1/2 Inch
• Catalog Description: EATON B-LINE SERIES CORNER PLATE, 0.22" H X 5.37" L X 3.5" W, STEEL, STAINLESS STEEL TYPE 304
• Category: Channel & Strut Fittings
• Full Technical Description: Plates Type; ASTM A240 304 Stainless Steel Material; 5-3/8 Inch; 3-1/2 Inch; 1-5/8 Inch Channel Width; 7/32 Inch Thickness; Hot Rolled, Pickled and Oiled Process; 75 Pound Per Carton Weight; 4 Hole(S); 9/16 Inch Diameter Hole/Slot Size; Hole Spacing Size 1-7/8 Inch (on-Center), 13/16 Inch (From End); Excludes Nut and Bolt; B143 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011504656
• SKU Name: bline b143ss4

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
