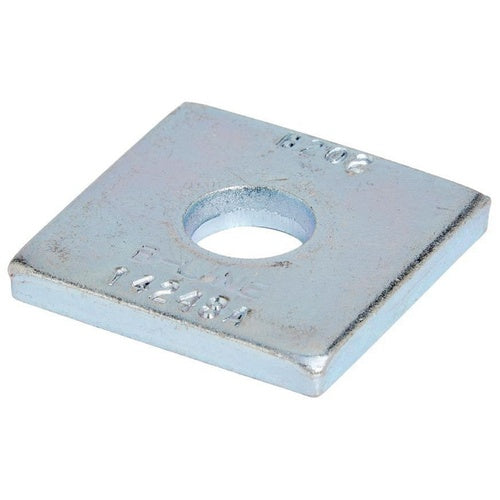

B-Line B202SS4 Square Washer, 9/16" Hole, 1/2" Bolt, Stainless Steel 304

Overview

B-Line B202SS4 Square Washer, 9/16" Hole, 1/2" Bolt, Stainless Steel 304

Product Specifications

• UPC: 78101152016
• Thickness: 1/4 Inch
• Material: ASTM A240 304 Stainless Steel
• Process: Hot Rolled, Pickled and Oiled
• Weight: 17 Pound per Carton
• Additional Information: Used On Flat Plate Fitting
• Catalog Number: B202SS4
• Brand Name: Cooper B-Line
• Model: B202
• Type: Washers
• Bolt/Rod Size: 1/2 Inch-13 TPI
• Hole Size: 9/16 Inch Diameter
• Length: 1-5/8 Inch
• Width: 1-5/8 Inch
• Catalog Description: EATON B-LINE SERIES SQUARE WASHER, 1.62" H X 1.62" L X 1.62" W, STEEL, STAINLESS STEEL TYPE 304, 1/2" BOLT SIZE, SQUARE WASHER
• Category: Channel & Strut Fittings
• Full Technical Description: Square Type; 304 Stainless Steel Material; 1-5/8 Inch; 1-5/8 Inch; 7/32 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.15 Pound Weight; 9/16 Inch Hole Size; 1/2 Inch-13 TPI Bolt/Rod Size; Torque Rating 50 Foot-Pound; B202 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Washer
• Unspsc: 39121311
• UPC 12 Digit: 781011520168
• SKU Name: bline b202ss4

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
