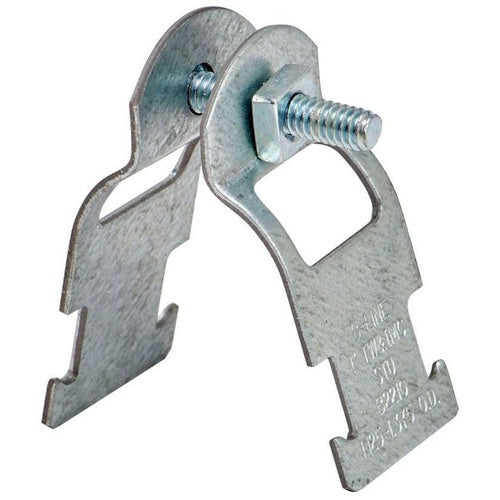

B-Line B2212PAZN 1-1/2" Multi-Grip Pipe ClAMP, Pre-Assembled, Thinwall

Overview

B-Line B2212PAZN 1-1/2" Multi-Grip Pipe Clamp, Pre-Assembled, Thinwall

Product Specifications

• UPC: 78101160544
• Catalog Number: B2212PAZN
• Type: EMT/IMC Rigid Conduit/Pipe to Strut, Pre-Assembled
• Material: 12 Gauge ASTM A1011 Steel
• Finish: ASTM B633/A653 Electroplated Zinc
• Trade Size: 1-1/2 Inch
• Outer Diameter: 1.735 to 1.931 Inch
• Load Rating: 600 Pound
• Additional Information: Safety Factor 5; Outer Dimension 3.375 Inch Length x 1.25 Inch Width x 0.0966 Inch Height; Approval UL (Canada and US), UL 2239
• Catalog Description: EATON B-LINE SERIES MULTI-GRIP/OFFSET PIPE CLAMP, 0.0966" H X 3.3750" L X 1.25" W, STEEL, 600 LBS LOAD, PIPE CLAMP FOR THINWALL (EMT)
• Category: Channel & Strut Fittings
• Full Technical Description: Emt/Imc Rigid Conduit/Pipe to Strut, Pre-Assembled Type; 12 Gauge ASTM A1011 Steel Material; ASTM B633/A653 Electroplated Zinc Finish; 1.735 to 1.931 Inch Outer Diameter; 600 Pound Load Rating; 1-1/2 Inch Trade Size; Safety Factor 5; Outer Dimension 3.375 Inch Length X 1.25 Inch Width X 0.0966 Inch Height; Approval UL (Canada and Us), UL 2239
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Conduit/Cable Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011605445
• SKU Name: bline b2212pazn
