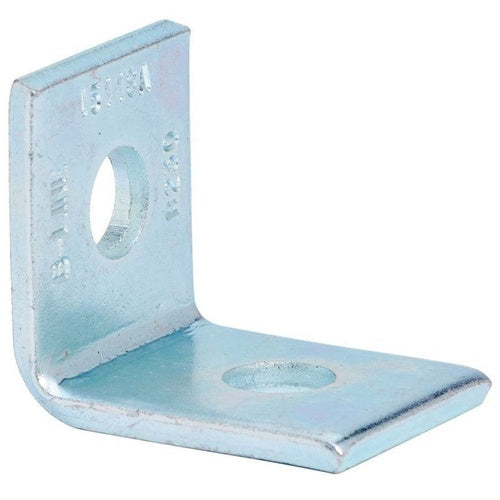

B-Line B230ZN 2-Hole Corner Angle, Zinc Plated

Overview

B-Line B230ZN 2-Hole Corner Angle, Zinc Plated

Product Specifications

• UPC: 78101152293
• Channel Width: 1-5/8 Inch
• Material: Steel
• Process: Hot Rolled Pickled and Oiled
• Finish: ASTM B633/A653 SC3 Type III Electroplated Zinc
• Weight: 37 Pound
• Additional Information: Hole Spacing Size 13/16 Inch (From End)
• Catalog Number: B230ZN
• Model: B230
• Type: Corner
• Number Of Sides: 2
• Number Of Holes: 2
• Hole/Slot Size: 9/16 Inch Diameter (Hole)
• Size: 1-7/8 Inch Length x 2-1/16 Inch Height
• Thickness: 7/32 Inch
• Catalog Description: EATON B-LINE SERIES CORNER ANGLE, 2.06" H X 1.87" L X 1.62" W, STEEL, ELECTRO-PLATED
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Type; Steel Material; 1-7/8 Inch Length X 2-1/16 Inch Height Size; ASTM B633/A653 SC3 Type III Electroplated Zinc Finish; 1-5/8 Inch Channel Width; 7/32 Inch Thickness; Hot Rolled Pickled and Oiled Process; 37 Pound Weight; 2 Hole(S); 9/16 Inch Diameter (Hole) Hole/Slot Size; 2 Side(S); Hole Spacing Size 13/16 Inch (From End); B230 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut 90 Deg Angle Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011522933
• SKU Name: bline b230zn
