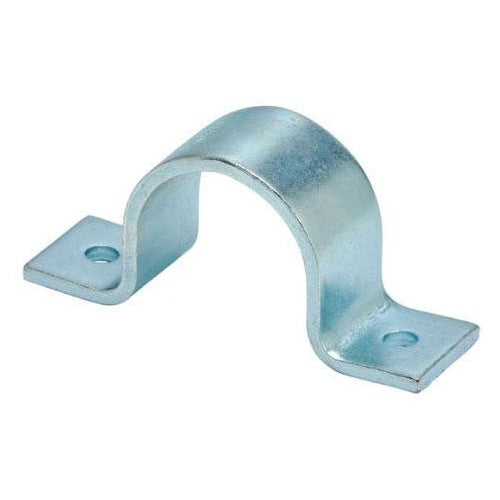

B-Line B2400-2HDG Standard Pipe Strap, 2", Hd Galvanized

Overview

B-Line B2400-2HDG Standard Pipe Strap, 2", Hd Galvanized

Product Specifications

• UPC: 78101163055
• Approval: UL (Canada and US)
• Additional Information: Applicable Standard ANSI/MSS SP-69/58, Federal Specification WW-H-171E, A-A-1192A; Thickness 1/4 Inch
• Catalog Number: B2400-2HDG
• Model: B2400
• Type: 2-Hole
• Trade Size: 2 Inch
• Hole/Bolt Size: 7/16 Inch
• Length: 5-21/32 Inch
• Width: 1-5/8 Inch
• Material: ASTM A1011/A123 Hot Dip Galvanized Low Carbon Steel
• Catalog Description: EATON B-LINE SERIES PIPE STRAPS, 2" HEIGHT, 5.65" LENGTH, 1.62" WIDTH, STEEL, SAFETY FACTOR OF 5, STANDARD PIPE CLAMP, HOT-DIPPED GALVANIZED, 2, .43
• Category: Channel & Strut Fittings
• Full Technical Description: 2-Hole Type; ASTM A1011/A123 Hot Dip Galvanized Low Carbon Steel Material; 5-21/32 Inch; 1-5/8 Inch; UL (Canada and Us) Approval; 2 Inch Trade Size; 7/16 Inch Hole/Bolt Size; Applicable Standard Ansi/Mss SP-69/58, Federal Specification WW-H-171E, A-A-1192A; Thickness 1/4 Inch; B2400 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Rigid/EMT Conduit Strap
• Unspsc: 30101804
• UPC 12 Digit: 781011630553
• SKU Name: bline b24002hdg

Resources

• Manufacturer Spec Sheet
