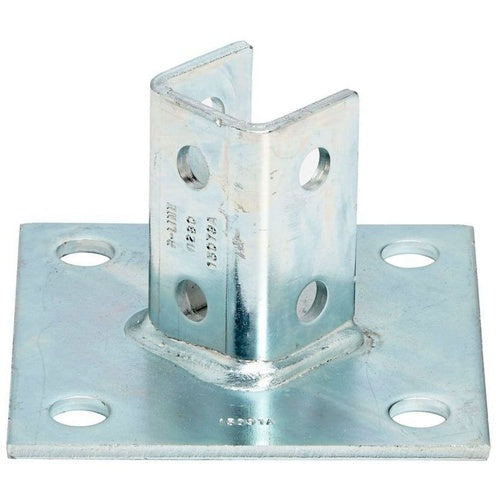

B-Line B280HDG Post Base 1-5/8" X 1-5/8" Channel, 6" X 6" X 3-1/2" Base, Hot

Overview

B-Line B280HDG Post Base 1-5/8" X 1-5/8" Channel, 6" X 6" X 3-1/2" Base, Hot

Product Specifications

• UPC: 78101152694
• Pad Mounting Hole Size: 3/4 Inch Dia
• Material: ASTM A1018/A123 Steel
• Process: Hot Rolled, Pickled, Oiled
• Finish: Hot-Dipped Galvanized
• Additional Information: Used On B22 Channel
• Catalog Number: B280HDG
• Type: U Post
• Number Of Channels: 1
• Channel Position: Centered
• Post Height: 3-1/2 Inch
• Number Of Channel Mounting Holes: 4
• Pad Size: 6 Inch L x 6 Inch W
• Number Of Pad Mounting Holes: 4
• Catalog Description: EATON B-LINE SERIES POST BASE, 3.5" H X 6" L X 6" W, STEEL, HOT-DIPPED GALVANIZED, FITS CHANNEL B22, SQUARE POST BASE, CENTERED OFFSET
• Category: Channel & Strut Fittings
• Full Technical Description: U Post Type; ASTM A1018/A123 Steel Material; Hot-Dipped Galvanized Finish; 3-1/2 Inch Post Height; Hot Rolled, Pickled, Oiled Process; 6 Inch L X 6 Inch W Pad Size; 1 Channel(S); Centered Channel Position; 4 Pad Mounting Hole(S); 3/4 Inch Dia Pad Mounting Hole Size; 4 Channel Mounting Hole(S); Used on B22 Channel
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Post Base
• Unspsc: 39121311
• UPC 12 Digit: 781011526948
• SKU Name: bline b280hdg

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
