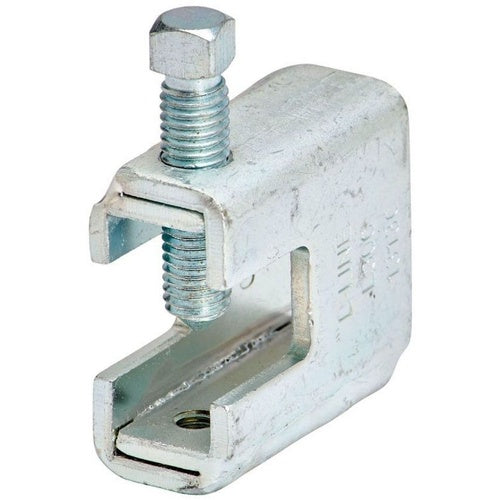

B-Line B308HDG Beam ClAMP,1/2"-13 Rod,1/2"-13 Set Screw, 7/8" Max Flange, Hg

Overview

B-Line B308HDG Beam Clamp,1/2"-13 Rod,1/2"-13 Set Screw, 7/8" Max Flange, Hg

Product Specifications

• Brand Name: EATON B-LINE SERIES
• Finish: Hot-Dip Galvanize
• Material: Low-Carbon Steel
• Size: 1/16 To 7/8 In
• Special Features: Includes 1/2 In-13 TPI Setscrew, Rod Size 1/2 In-13 TPI, Load Capacity 1500 Lb, Weight 133 Lb per 100
• Sub Brand: Bolted Framing
• Type: Beam Clamp
• Catalog Description: EATON B-LINE SERIES BEAM CLAMPS, 2.5625"HX2.5"LX0.4670"W, STEEL, 1500 LOAD, 1/2"-13 ROD SIZE, 1/2-13 SCREW SIZE, 0.875"BEAM WIDTH
• Category: Channel & Strut Fittings
• Full Technical Description: Steel Material; Hot Dip Galvanized Finish; 1500 Pound Load Capacity; 1/2 Inch-13 TPI Screw Size; Overall Dimension 2.5 Inch Length X 0.467 Inch Width X 2.5625 Inch Height; Flange Width 7/8 Inch; Includes Set Screw; Applicable Standard UL (Canada and Us)
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Beam Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011530242
• SKU Name: bline b308hdg
