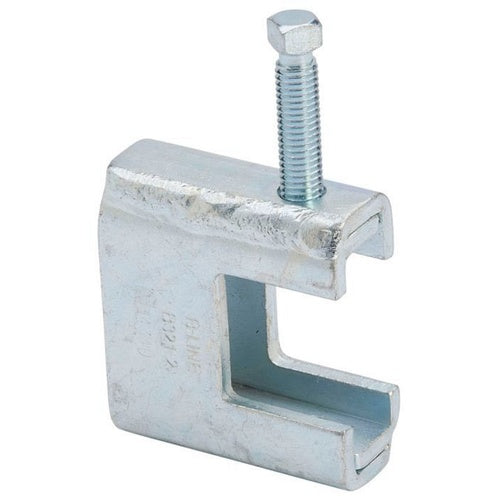

B-Line B321-2HDG Beam ClAMP, 1/2"-13, 1-11/16" Flange, Hd Galvanized

Overview

B-Line B321-2HDG Beam Clamp, 1/2"-13, 1-11/16" Flange, Hd Galvanized

Product Specifications

• Brand Name: EATON B-LINE SERIES
• Finish: Hot-Dip Galvanize
• Material: Low-Carbon Steel
• Size: 1-11/16 In
• Special Features: Includes 1/2 In-13 TPI Setscrew, Rod Size 1/2 In-13 TPI, Load Capacity 1400 Lb, Weight 186 Lb per 100
• Sub Brand: Bolted Framing
• Type: Beam Clamp
• Catalog Description: EATON B-LINE SERIES BEAM CLAMPS, 3.5625"HX3.25"LX0.6250"W, STEEL, 1400 LOAD CAP, 1/2"-13 ROD SIZE, 1/2-13 SCREW SIZE, 0.313"BEAM THICKNESS
• Category: Channel & Strut Fittings
• Full Technical Description: Steel Material; Hot Dip Galvanized Finish; 1400 Pound Load Capacity; 1/2 Inch-13 TPI Screw Size; Overall Dimension 3.25 Inch Length X 0.625 Inch Width X 3.5625 Inch Height; Beam Thickness 1-11/16 Inch; Includes Set Screw; Applicable Standard UL (Canada and Us)
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Beam Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011531249
• SKU Name: bline b3212hdg
