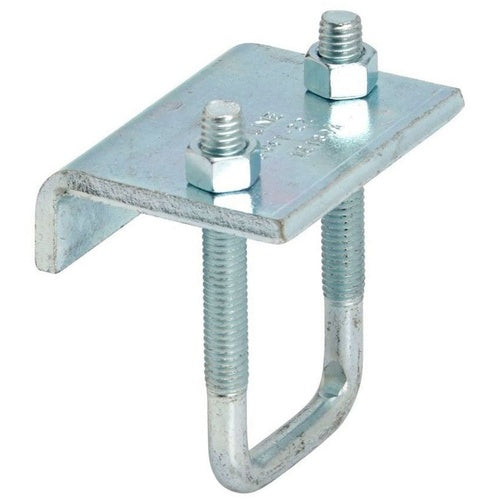

B-Line B441-22SS4 Beam ClAMP, 3/4" Max Flange, 13/16" To 1-5/8" High Channel, Stainless Steel

Overview

B-Line B441-22SS4 Beam Clamp, 3/4" Max Flange, 13/16" To 1-5/8" High Channel, Stainless Steel

Product Specifications

• UPC: 78101155286
• Application: 13/16 to 1-5/8 Inch High Channel
• Additional Information: Overall Dimension 2-3/8 Inch Length x 3 Inch Width
• Catalog Number: B441-22SS4
• Brand Name: Cooper B-Line
• Model: B441-22
• Type: Single U
• Maximum Jaw Capacity: 3/4 Inch Thickness
• Load Capacity: 1200 Pound
• Material: 304 Stainless Steel
• Material Specification: ASTM A240
• Catalog Description: EATON B-LINE SERIES BEAM CLAMPS, 3.3750" H X 3" L X 2.3750" W, 1850 LBS LOAD CAP, 0.75" BEAM THICKNESS, STAINLESS STEEL 304
• Category: Channel & Strut Fittings
• Full Technical Description: Single U Type; 304 Stainless Steel Material; 3/4 Inch Thickness Max. Jaw Capacity; 13/16 to 1-5/8 Inch High Channel Application; ASTM A240 Material Specification; 1200 Pound Load Capacity; Overall Dimension 2-3/8 Inch Length X 3 Inch Width; B441-22 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Beam Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011552862
• SKU Name: bline b44122ss4
