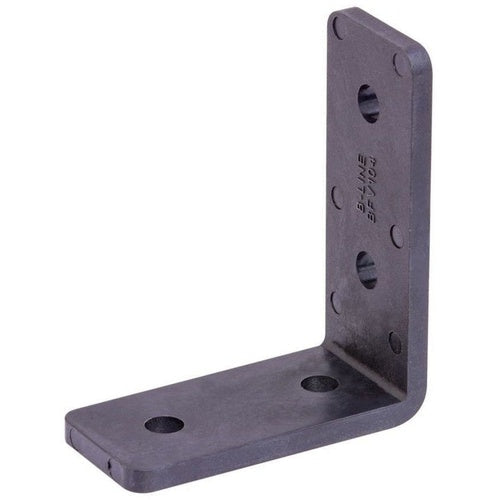

B-Line BFV104 4-Hole 90 Deg Corner Angle, Fiberglass

Overview

B-Line BFV104 4-Hole 90 Deg Corner Angle, Fiberglass

Product Specifications

• UPC: 78101181181
• Channel Width: 1-5/8 Inch
• Material: ASTM E84/D635 Fiberglass Reinforced Polyurethane
• Process: Injection Molded
• Additional Information: End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Hole Spacing from End 13/16 Inch
• Catalog Number: BFV104
• Model: BFV
• Type: Corner
• Number Of Sides: 2
• Number Of Holes: 4
• Hole/Slot Size: 13/32 Inch Dia Hole
• Size: 3-1/2 Inch L x 1-5/8 Inch W x 4-1/8 Inch H
• Thickness: 1/4 Inch
• Catalog Description: EATON B-LINE SERIES CORNER ANGLE, 4.1250" H X 3.5" L X 1.62" W, STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Type; ASTM E84/D635 Fiberglass Reinforced Polyurethane Material; 3-1/2 Inch L X 1-5/8 Inch W X 4-1/8 Inch H Size; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Injection Molded Process; 4 Hole(S); 13/32 Inch Dia Hole Hole/Slot Size; 2 Side(S); End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Hole Spacing From End 13/16 Inch; BFV Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut 90 Deg Angle Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011811815
• SKU Name: bline bfv104
