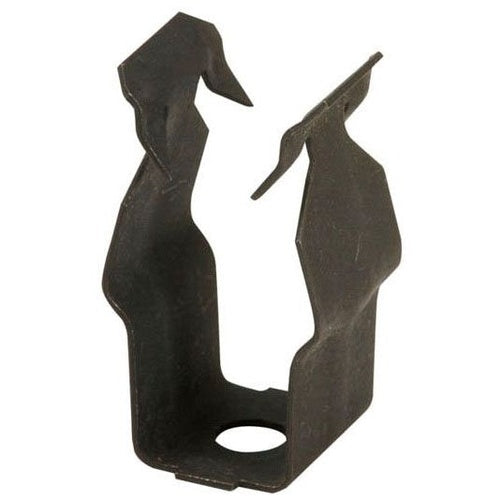

B-Line BP-8 Conduit Fastener, 1/2" Emt Conduit Size, 1/4" Bolt

Overview

B-Line BP-8 Conduit Fastener, 1/2" Emt Conduit Size, 1/4" Bolt

Product Specifications

• UPC: 78101119200
• Catalog Number: BP-8
• Type: Push-In Conduit Clip
• Conduit/Cable Size: 1/2 Inch EMT
• Mounting Hole Size: 1/4 Inch
• Material: ASTM A684/AISI 1055 Heat Treated Cold Rolled HCS
• Load Capacity: 15 Lb (Horizontal), 25 Lb (Vertical)
• Standard Package: 100 per Box
• Catalog Description: EATON B-LINE SERIES CONDUIT SUPPORT FASTENERS, CONDUIT AND CABLE, 1" HEIGHT, 1" LENGTH, 1" WIDTH, 0.027LBS, CONDUIT SIZE: 0.5" EMT, PUSH-TYPE CONDUIT FASTENERS, 25 LBS VERTICAL, 15 LBS HORIZONTAL LOAD CAPACITY
• Category: Anchors & Fasteners
• Full Technical Description: Push-in Conduit Clip Type; ASTM A684/Aisi 1055 Heat Treated Cold Rolled HCS Material; 100 Per Box Standard Package; 1/4 Inch Mounting Hole Size; 15 lb (Horizontal), 25 lb (Vertical) Load Capacity; 1/2 Inch EMT Conduit/Cable Size
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Conduit/Cable Fastener
• Unspsc: 39121311
• UPC 12 Digit: 781011192006
• SKU Name: bline bp8
