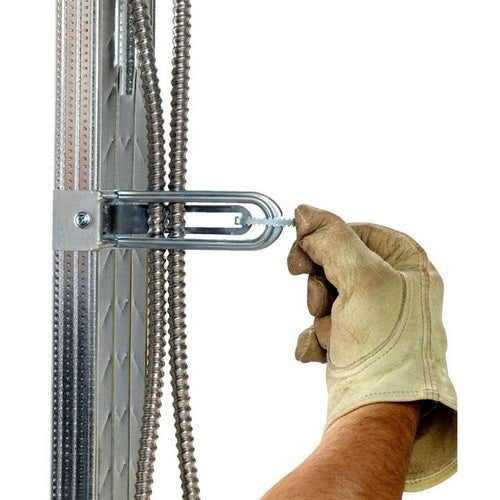

B-Line BRC52-U24 Mc/Ac Cable Carrier To Beam Fastener, 1/8"-1/4" Flange Thickness

Overview

B-Line BRC52-U24 Mc/Ac Cable Carrier To Beam Fastener, 1/8"-1/4" Flange Thickness

Product Specifications

• UPC: 78205144067
• Approval: UL (Canada and US)
• Additional Information: Number of Cable Runs 9
• Catalog Number: BRC52-U24
• Model: BRC52
• Cable Outer Diameter: 0.43 to 0.56 Inch
• Beam/Flange Size: 1/8 to 1/4 Inch
• Material: ASTM A684, AISI 1055 Spheroidized Annealed Cold Rolled High Carbon Steel
• Mounting: Bottom
• Load Capacity: 75 Lb
• Standard Package: 25 per Box
• Catalog Description: EATON B-LINE SERIES CABLE SUPPORT FASTENERS, BEAMS, FLANGE, 1" HEIGHT, 1" LENGTH, 1" WIDTH, 0.232LBS, MC/AC CABLE CARRIER TO BEAM FASTENER, .13" MIN, .25" MAX MOUNT SIZE, .43" MIN, 0.56" MAX CABLE DIAMETER, 50 LBS LOAD CAPACITY, 9 MAX RUNS
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: ASTM A684, AISI 1055 Spheroidized Annealed Cold Rolled High Carbon Steel Material; UL (Canada and Us) Approval; Bottom Mounting; 25 Per Box Standard Package; 75 lb Load Capacity; 0.43 to 0.56 Inch Cable Outer Diameter; 1/8 to 1/4 Inch Beam/Flange Size; Number of Cable Runs 9; BRC52 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Products
• Sub Category: Cable To Beam/Flange Fastener
• Unspsc: 39121702
• UPC 12 Digit: 782051440676
• SKU Name: bline brc52u24
