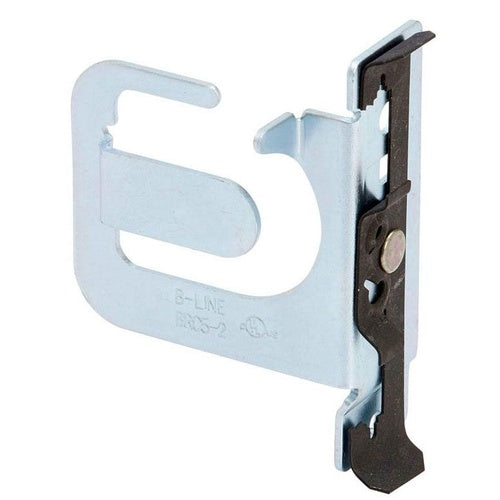

B-Line BRC52-W2 Mc/Ac Cable Support To Wire/Rod Fastener

Overview

B-Line BRC52-W2 Mc/Ac Cable Support To Wire/Rod Fastener

Product Specifications

• UPC: 78205144076
• Additional Information: Number of Runs 9; Flange Thickness 1/8 to 3/8 Inch or #12 to 4 Inch Rod
• Catalog Number: BRC52-W2
• Model: BR
• Type: Multi-Run Cable Carrier
• Conduit/Cable Size: 0.43 to 0.56 Inch Diameter (Armored/Metallic Cable)
• Material: ASTM A591 Zinc Plated Steel
• Load Capacity: 50 Pound
• Standard Package: 25 per Box
• Approval: UL (Canada and US)
• Catalog Description: EATON B-LINE SERIES CABLE SUPPORT FASTENERS, CONDUIT AND CABLE, 0.048LBS, MULTI-RUN CABLE CARRIER FOR MC/AC CABLE, .13" MIN, .38" MAX MOUNT SIZE, .43" MIN, 0.56" MAX CABLE DIAMETER, 25 LBS LOAD CAPACITY, 9 MAX RUNS, ZINC PLATED
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Multi-Run Cable Carrier Type; ASTM A591 Zinc Plated Steel Material; UL (Canada and Us) Approval; 25 Per Box Standard Package; 50 Pound Load Capacity; 0.43 to 0.56 Inch Diameter (Armored/Metallic Cable) Conduit/Cable Size; Number of Runs 9; Flange Thickness 1/8 to 3/8 Inch or #12 to 4 Inch Rod; BR Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Products
• Sub Category: Conduit/Cable Fastener
• Unspsc: 39121702
• UPC 12 Digit: 782051440768
• SKU Name: bline brc52w2
