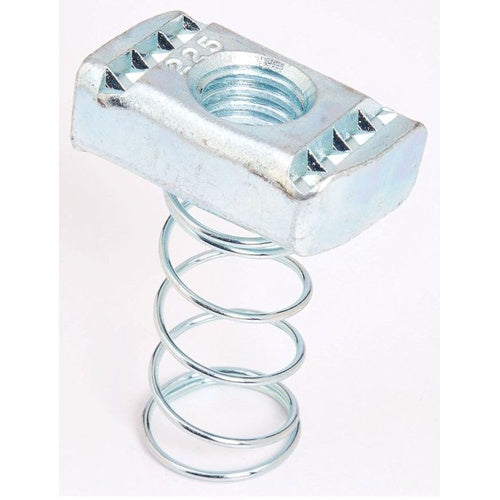

B-Line N224ZN Spring Nut, 1/4"-20 Thread, 1/4" Nut

Overview

B-Line N224ZN Spring Nut, 1/4"-20 Thread, 1/4" Nut

Product Specifications

• UPC: 78101140333
• Thickness: 1/4 Inch
• Material: Carbon Steel
• Material Specification: ASTM B633 SC1 Type III
• Process: Press Formed, Machined, Hardened
• Finish: Zinc Electroplated
• Additional Information: Resistance to Slip 300 Pound (12/14/16 Gauge Channel); Pull-Out Strength 450 Pound (12/14/16 Gauge Channel); Fits Channel Size B22, B24, B26, B32
• Catalog Number: N224ZN
• Brand Name: Cooper B-Line
• Model: N224
• Applicable Standard: ISO 9001
• Type: Nuts
• Nominal Diameter: 1/4 Inch
• Tpi: 20
• Thread Series: UNC-2A
• Catalog Description: EATON B-LINE SERIES SPRING NUT, 0.85"HX1.75"LX1.3750"W, STEEL, ELECTRO-PLATED, 3/8-16 BOLT SIZE, 250 LBS LOAD RATING, 300 LBS LOAD RATING
• Category: Screws,Nuts,Bolts,Washers
• Full Technical Description: With Spring Type; Carbon Steel Material; ASTM B633 SC1 Type III Zinc Electroplated Finish; 1/4 Inch Nominal Diameter; 20 TPI; 1/4 Inch Thickness; Press Formed, Machined, Hardened Process; ASTM A108/A36 Material Specification; Resistance to Slip 300 Pound (12/14/16 Gauge Channel); Pull-Out Strength 450 Pound (12/14/16 Gauge Channel); Used on B22, B24, B26, B32 Channel; 200 Model
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Nut - Non Metric
• Unspsc: 30101804
• UPC 12 Digit: 781011403331
• SKU Name: bline n2241/4
