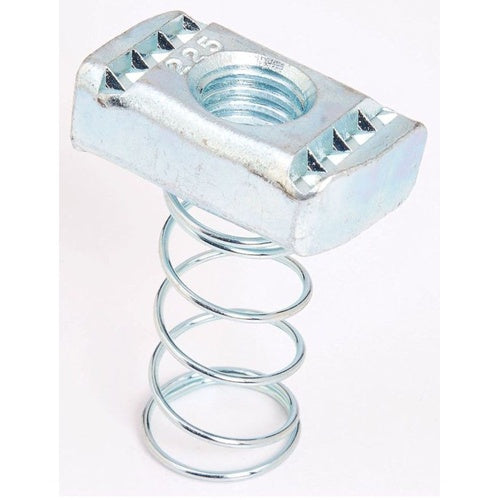

B-Line N224SS6 Spring Nut, 1/4"-20, 1/4" Nut, Stainless Steel

Overview

B-Line N224SS6 Spring Nut, 1/4"-20, 1/4" Nut, Stainless Steel

Product Specifications

• UPC: 78101140334
• Thickness: 1/4 Inch
• Material: 316 Stainless Steel
• Material Specification: MPIF 35/ASTM F593
• Process: Press Formed, Machined, Hardened
• Additional Information: Resistance to Slip 300 Pound (12/14/16 Gauge Channel), Pull-Out Strength 450 Pound (12/14/16 Gauge Channel); Fits Channel Size B22, B24, B26, B32 Channel
• Catalog Number: N224SS6
• Brand Name: Cooper B-Line
• Model: N224
• Applicable Standard: ISO 9001
• Type: Nuts
• Nominal Diameter: 1/4 Inch
• Tpi: 20
• Thread Series: UNC
• Catalog Description: EATON B-LINE SERIES SPRING NUT, 0.85"HX1.75"LX1.31"W, STAINLESS STEEL TYPE 316, 1/4"-20 BOLT SIZE, 250 LBS LOAD RATING, 300 LBS LOAD RATING
• Category: Channel & Strut Fittings
• Full Technical Description: Nuts Type; 316 Stainless Steel Material; 1/4 Inch Nominal Diameter; Unc Thread Series; 20 TPI; ISO 9001 Applicable Standard; 1/4 Inch Thickness; Press Formed, Machined, Hardened Process; Mpif 35/Astm F593 Material Specification; Resistance to Slip 300 Pound (12/14/16 Gauge Channel), Pull-Out Strength 450 Pound (12/14/16 Gauge Channel); Fits Channel Size B22, B24, B26, B32 Channel; N224 Model
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Nut - Non Metric
• Unspsc: 39121311
• UPC 12 Digit: 781011403348
• SKU Name: bline n224ss6
