Blackburn 10N #10Awg Connector

Overview

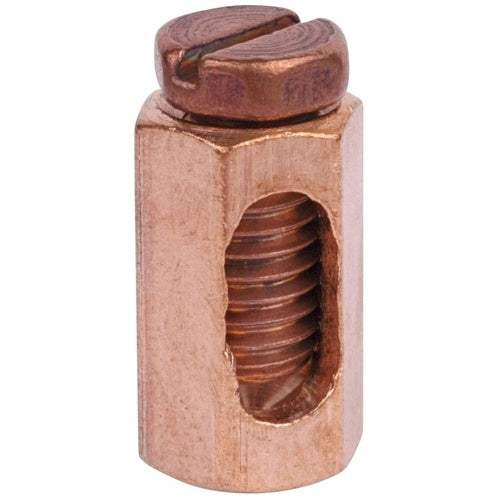

Blackburn 10N #10Awg Connector

Product Specifications

• UPC: 78378620075
• Catalog Number: 10N
• Model: N
• Installation: SLOTTED HEX HEAD SCREW
• Conductor Material: COPPER/ALUMINUM
• Minimum Run Conductor Size: 14 AWG SOLID (COPPER)
• Maximum Run Conductor Size: 10 AWG STRANDED (COPPER)
• Material: COPPER ALLOY
• Additional Information: SIZE 3/8 INCH W X 0.562 INCH H
• Catalog Description: COPPER TYPE N MECHANICAL SERVICE ENTRANCE CONNECTOR, AWG COPPER #10 STRANDED TO #14 SOLID. TORQUE 20 LB-INCHES.
• Category: Service Entrance Cable Fittings
• Full Technical Description: Copper Alloy Material; 14 AWG Solid (Copper) min. Run Conductor Size; 10 AWG Stranded (Copper) Max. Run Conductor Size; Slotted Hex Head Screw Installation; Copper/Aluminum Conductor Material; Size 3/8 Inch W X 0.562 Inch H; N Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200757
• SKU Name: blkbrn 10n

Resources

• Product Spec Sheet
