Crouse-Hinds AHg21103

Overview

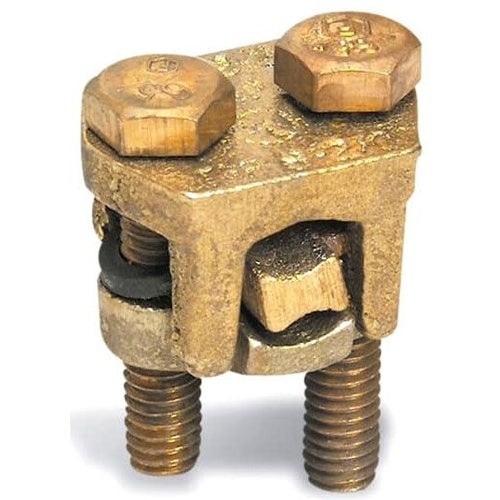

Blackburn 2B350W 350 Copper 2- Bolt Connector

Product Specifications

• UPC: 78378640018
• Maximum Tap Conductor Size: 350 KCMIL
• Material: HIGH CONDUCTIVITY DUCTILE COPPER ALLOY SPACER, HIGH STRENGTH COPPER ALLOY BOLT/CASTING
• Approval: UL 486-A, CSA
• Catalog Number: 2B350W
• Brand Name: Blackburn[R]
• Model: 2BW
• Installation: TWO BOLT WITH SPACER
• Conductor Material: COPPER
• Minimum Run Conductor Size: 4/0 AWG STRANDED
• Maximum Run Conductor Size: 350 KCMIL
• Minimum Tap Conductor Size: 4 AWG SOLID
• Catalog Description: COPPER TYPE 2BW - TWO-BOLT CONNECTOR WITH SPACER FOR WIRE RANGE MAIN: 4/0 STR. - 350 KCMIL TAP: 4 SOL. - 350 KCMIL , BOLT SIZE 3/4
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Ductile Copper Alloy Spacer, High Strength Copper Alloy Bolt/Casting Material; 4/0 AWG Stranded min. Run Conductor Size; 350 kcmil Max. Run Conductor Size; 4 AWG Solid min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; Two Bolt With Spacer Installation; Copper Conductor Material; UL 486-A, CSA Approval; BLACKBURN[R] Brand; 2BW Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400188
• SKU Name: blkbrn 2b350w
