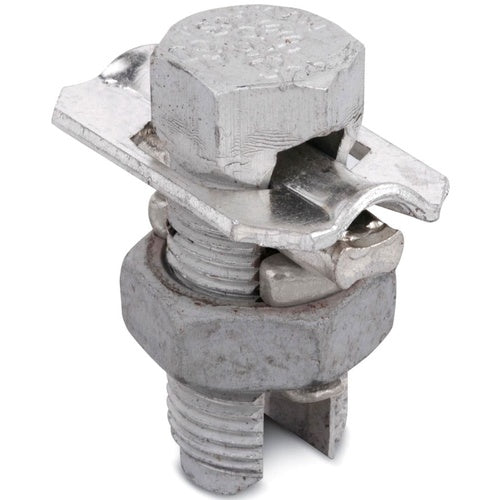

Blackburn 40CA 4/0 Aluminum/Copper Split Bolt

Overview

Blackburn 40CA 4/0 Aluminum/Copper Split Bolt

Product Specifications

• UPC: 78378620058
• Maximum Tap Conductor Size: 2/0 AWG Solid
• Material: Aluminum
• Approval: UL E9809
• Additional Information: Overall Dimension 1-1/4 Inch Width x 2-15/32 Inch Height; Application Splicing, Tapping or Terminating Conductor in Power and Grounding Electrical Connection
• Catalog Number: 40CA
• Model: CA
• Type: Split-Bolt
• Installation: Split-Bolt Connector with Spacer and Washer
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 2/0 AWG Solid
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Minimum Tap Conductor Size: 4/0 AWG Stranded
• Catalog Description: TYPE CA ALUMINUM SPLIT-BOLT CONNECTOR WITH SPACER AND WASHER FOR USE ON COPPER, ALUMINUM CONDUCTORS. CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 4/0 STR.-2/0 SOL.
• Category: Large Terminals & Connectors
• Full Technical Description: Split-Bolt Type; Aluminum Material; 2/0 AWG Solid min. Run Conductor Size; 4/0 AWG Stranded Max. Run Conductor Size; 4/0 AWG Stranded min. Tap Conductor Size; 2/0 AWG Solid Max. Tap Conductor Size; Split-Bolt Connector With Spacer and Washer Installation; Aluminum/Copper Conductor Material; UL E9809 Approval; Overall Dimension 1-1/4 Inch Width X 2-15/32 Inch Height; Application Splicing, Tapping or Terminating Conductor in Power and Grounding Electrical Connection; CA Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200580
• SKU Name: blkbrn 40ca

Resources

• Manufacturer Spec Sheet
